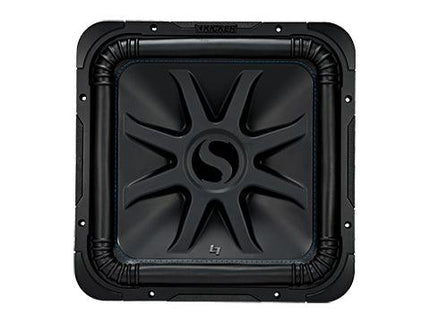

Kicker 44L7S154 15" 2000W Dual-4-Ohm L7 Car Audio Subwoofer/Sub Solobaric L7S

15" Solo-Baric L7 4 Ohm

The KICKER® Solo-Baric® L7S™ boasts massive power handling and more cone area than any circular sub. You move more air, so you get more bass.

Square Matters

The heavy-duty motor structure includes a large-diameter spider for less flex, longer life and superior accuracy. High-temp voice coil wire winding completes a powerful Comp motor that makes the most of every watt you give it.

Features:

• Dual Four-Ohm Voice Coils
• Injection-Molded Polypropylene Cone
• Patented Corner Ribs Minimize Distortion
• SoloKon™ 360-Degree Back Bracing
• Ribbed Santoprene Surround With Blue Surround Stitching
• UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
• Thick Tinsel Leads
• Large Ceramic Magnet
• Cast Aluminum Basket
• Satin-Nickel Plated, Spring-Loaded Speaker Terminals

Specifications

Thiele/Small Parameters

44L7S154 T/S Parameters PDF

Size (IN.,CM)

15, 38.1

Impedance (OHMS)

4 DVC

Max Rec Amplifier Power (WATTS PEAK/RMS)*

2000/1000

Sensitivity (dB 1w/1m)

89.4

Frequency Response (Hz)

18-100

Mounting Depth (IN.,CM)

8-11/16, 22.1

Mounting Cutout, Square (IN.,CM)

13-3/4, 34.9

Min Rec Sealed Box Volume (CU. FT., Liters)

2.0, 56.64

Max Rec Sealed Box Volume (CU. FT., Liters)

6.0, 169.9

Min Rec Vented Box Volume (CU. Ft., Liters)**

3.0, 85.0

Max Rec Vented Box Volume (CU. Ft., Liters)**

6.0, 169.9

What's in the box?

one 15-inch subwoofer, one owner's manual, two stickers

*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.

**Port Volume Excluded.

Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
