Z-Series Subwoofer

The Z v.7 is the third step up in Sundown's 2025 "ultra-high excursion" sub-woofer lineup after the M and X v.4 series. All models (12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691597, D691598, and D741841) – the Sundown “mega-platform.” Please note – the Z v.7 is not available, aside from special orders, in 10s due to the motor size. We mate these new platform frames to a quad stacked 265mm (10.43”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). This is, by far, the largest motor we have ever produced on a Z series sub-woofer. The motor force factor (BL^2/RE) is ~50% higher than the previous generation Z v.6 series. This motor drives a 3.3" diameter 4-Layer Round Wire Aluminum Voice Coil wound on a thick aluminum former. These new round wire coils use a special Sundown designed “fat wire” winding method to handle significant amounts of power and abuse. Based on Sundown's years of experience with the Z v.4, 5, and 6 series we've also improved the voice coil ventilation yet again. The Z v.7 features an entirely new and patent-pending airflow directing pole cap, six pole OD channels, SIXTEEN gap vents, and a cross-drilled / slotted top plate to keep the voice coil running cool under extreme conditions.The Z v.7 motor also features a 9mm thick magnet ID Faraday ring which is locked into both the top and back plates. This ring combined with an all-new pole-extension inductance sleeve gives the Z v.7 the most linear inductive performance of any mega-platform sub-woofer to date. As if all of this were not enough to cement the Z v.7as a legend... we were also able to achieve 42mm of one-way linear excursion by 70% BL with an extremely uniform curve via our extensively FEA optimized motor and 95mm long voice-coil winding length. The Z v.7 series was designed from the ground-up to become the new standard in the low-frequency / small, ported box sub-woofer category in this price range. They will work in the same enclosures that are commonly used for Sundown Audio's mega-platform sub-woofers. The Z v.7 series, like its other mega-platform brethren, is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion.Physical Dimensions: Click Here

Read more less

Small Size. Serious Power. Unmatched Engineering. Don’t let the size fool you — the Z8 Series 8” subwoofer is built to perform well beyond expectations. With an incredible 2000 watts RMS and 4000 watts peak power handling, this compact beast is ready to drop low, hit hard, and take a beating — all while maintaining control and clarity. Designed for high-output systems with limited space, the Z8 offers the same elite-level engineering found in our larger Z Series drivers, packed into an 8-inch frame. This sub is built around a black aluminum 2.75" 4-layer round-winding voice coil with a massive 30mm Xmax, giving it incredible excursion and power handling for its size. Every component is engineered for airflow and cooling: from the optimized high-velocity pole vent to the cast-aluminum vented frame spacer ring and heavily vented magnetic gap. Add in stitched XL tinsel leads, a Mega-Roll v.2 surround, custom spider packs, and a large aluminum Faraday ring, and you’ve got a sub that’s made for real-world abuse and long-term performance. Designed specifically for ported enclosures (sealed not recommended), the Z8 thrives in a 1.0 cu. ft. net enclosure tuned to 32Hz. Whether you’re building a powerhouse daily driver or squeezing competition-level performance into a tight space, the Z8 delivers big bass in a small footprint — no compromises. Features Power Handling:2000 Watts RMS / 4000 Watts Peak Xmax = 30mm  Heavily vented magnetic gap Spring Loaded Terminals Optimized high-velocity pole vent Innovative high-velocity cast-aluminum vented frame spacer ring Black aluminum 2.75 inch 4-layer round-winding voice coil sing our proprietary ultra-thick winding method Mega-Roll v.2 surround Custom tooled basket Large aluminum Faraday (shorting) Ring Stitched-On XL Tinsel Leads to prevent fatigue and failure Custom-tooled ultra-linear spider packs

Read more less

The Z v.6 is the second step up in Sundown's "ultra-high excursion" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841). Sundown mates these new platform frames to a quad stacked 240mm (9.45”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). Compared to the X v.3 motor both the top & back plates are thicker allowing for even more magnetic strength and excursion potential. For the Z v.6 the top plate is another 5mm thicker than even the outgoing Z v.5 series! This motor drives a 3" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. The Z v.6 now uses the same voice coil as the NS v.5 series. The Z v.5 utilized a 4-layer voice coil – the change to an 8-layer was to answer our customers desire for higher motor force (more output) and it does just that! Based on Sundown's years of experience with the Z v.4 and Z v.5 series we've also improved the voice coil ventilation to be even more effective. The Z v.6 features a high-velocity pole vent, a heavily vented magnetic gap, and (all new for the v.6) machined channels in four places around the pole piece itself. The Z v.6 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that are commonly used for for Sundown Audio's subwoofers, although, they can be used with enclosures up to about 50% larger than those if you desire even more low-end extension. The Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion. Features Power Handling:3250 Watts RMS / 6500 Watts Peak Xmax = 35mm one-way by 70% BL Heavily vented magnetic gap Spring Loaded Terminals Optimized high-velocity pole vent Innovative high-velocity cast-aluminum vented frame spacer ring Black aluminum 3 inch 8-layer voice coil Mega-Roll v.2 surround Custom tooled basket Large aluminum Faraday (shorting) Ring Stitched-On XL Tinsel Leads to prevent fatigue and failure Custom-tooled ultra-linear spider packs Enclosure Designs .Zip File

Read more less

The Z v.6 is the second step up in Sundown's "ultra-high excursion" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841). Sundown mates these new platform frames to a quad stacked 240mm (9.45”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). Compared to the X v.3 motor both the top & back plates are thicker allowing for even more magnetic strength and excursion potential. For the Z v.6 the top plate is another 5mm thicker than even the outgoing Z v.5 series! This motor drives a 3" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. The Z v.6 now uses the same voice coil as the NS v.5 series. The Z v.5 utilized a 4-layer voice coil – the change to an 8-layer was to answer our customers desire for higher motor force (more output) and it does just that! Based on Sundown's years of experience with the Z v.4 and Z v.5 series we've also improved the voice coil ventilation to be even more effective. The Z v.6 features a high-velocity pole vent, a heavily vented magnetic gap, and (all new for the v.6) machined channels in four places around the pole piece itself. The Z v.6 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that are commonly used for for Sundown Audio's subwoofers, although, they can be used with enclosures up to about 50% larger than those if you desire even more low-end extension. The Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion. Features Power Handling:3250 Watts RMS / 6500 Watts Peak Xmax = 35mm one-way by 70% BL Heavily vented magnetic gap Spring Loaded Terminals Optimized high-velocity pole vent Innovative high-velocity cast-aluminum vented frame spacer ring Black aluminum 3 inch 8-layer voice coil Mega-Roll v.2 surround Custom tooled basket Large aluminum Faraday (shorting) Ring Stitched-On XL Tinsel Leads to prevent fatigue and failure Custom-tooled ultra-linear spider packs Enclosure Designs .Zip File

Read more less

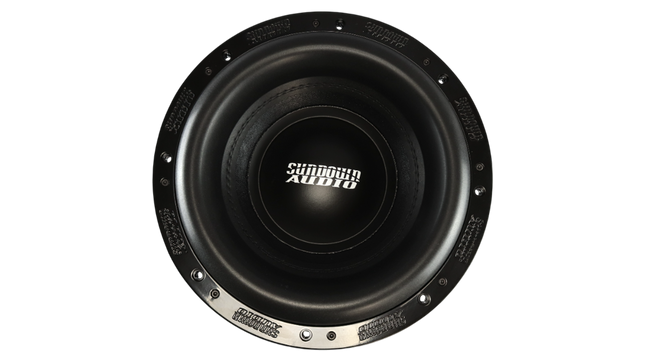

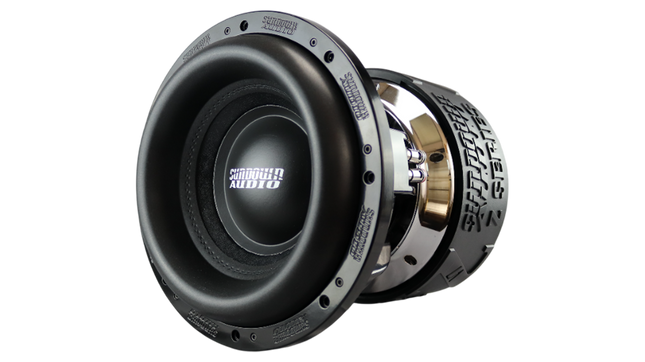

The Z v.7 is the third step up in Sundown's 2025 "ultra-high excursion" sub-woofer lineup after the M and X v.4 series. All models (12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691597, D691598, and D741841) – the Sundown “mega-platform.” Please note – the Z v.7 is not available, aside from special orders, in 10s due to the motor size. We mate these new platform frames to a quad stacked 265mm (10.43”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). This is, by far, the largest motor we have ever produced on a Z series sub-woofer. The motor force factor (BL^2/RE) is ~50% higher than the previous generation Z v.6 series. This motor drives a 3.3" diameter 4-Layer Round Wire Aluminum Voice Coil wound on a thick aluminum former. These new round wire coils use a special Sundown designed “fat wire” winding method to handle significant amounts of power and abuse. Based on Sundown's years of experience with the Z v.4, 5, and 6 series we've also improved the voice coil ventilation yet again. The Z v.7 features an entirely new and patent-pending airflow directing pole cap, six pole OD channels, SIXTEEN gap vents, and a cross-drilled / slotted top plate to keep the voice coil running cool under extreme conditions.The Z v.7 motor also features a 9mm thick magnet ID Faraday ring which is locked into both the top and back plates. This ring combined with an all-new pole-extension inductance sleeve gives the Z v.7 the most linear inductive performance of any mega-platform sub-woofer to date. As if all of this were not enough to cement the Z v.7as a legend... we were also able to achieve 42mm of one-way linear excursion by 70% BL with an extremely uniform curve via our extensively FEA optimized motor and 95mm long voice-coil winding length. The Z v.7 series was designed from the ground-up to become the new standard in the low-frequency / small, ported box sub-woofer category in this price range. They will work in the same enclosures that are commonly used for Sundown Audio's mega-platform sub-woofers. The Z v.7 series, like its other mega-platform brethren, is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion. Physical Dimensions: Download

Read more less

The Z v.7 is the third step up in Sundown's 2025 "ultra-high excursion" sub-woofer lineup after the M and X v.4 series. All models (12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691597, D691598, and D741841) – the Sundown “mega-platform.” Please note – the Z v.7 is not available, aside from special orders, in 10s due to the motor size. We mate these new platform frames to a quad stacked 265mm (10.43”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). This is, by far, the largest motor we have ever produced on a Z series sub-woofer. The motor force factor (BL^2/RE) is ~50% higher than the previous generation Z v.6 series. This motor drives a 3.3" diameter 4-Layer Round Wire Aluminum Voice Coil wound on a thick aluminum former. These new round wire coils use a special Sundown designed “fat wire” winding method to handle significant amounts of power and abuse. Based on Sundown's years of experience with the Z v.4, 5, and 6 series we've also improved the voice coil ventilation yet again. The Z v.7 features an entirely new and patent-pending airflow directing pole cap, six pole OD channels, SIXTEEN gap vents, and a cross-drilled / slotted top plate to keep the voice coil running cool under extreme conditions.The Z v.7 motor also features a 9mm thick magnet ID Faraday ring which is locked into both the top and back plates. This ring combined with an all-new pole-extension inductance sleeve gives the Z v.7 the most linear inductive performance of any mega-platform sub-woofer to date. As if all of this were not enough to cement the Z v.7as a legend... we were also able to achieve 42mm of one-way linear excursion by 70% BL with an extremely uniform curve via our extensively FEA optimized motor and 95mm long voice-coil winding length. The Z v.7 series was designed from the ground-up to become the new standard in the low-frequency / small, ported box sub-woofer category in this price range. They will work in the same enclosures that are commonly used for Sundown Audio's mega-platform sub-woofers. The Z v.7 series, like its other mega-platform brethren, is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion. Physical Dimensions: Download

Read more less

The Z v.6 is the second step up in Sundown's "ultra-high excursion" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841). Sundown mates these new platform frames to a quad stacked 240mm (9.45”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). Compared to the X v.3 motor both the top & back plates are thicker allowing for even more magnetic strength and excursion potential. For the Z v.6 the top plate is another 5mm thicker than even the outgoing Z v.5 series! This motor drives a 3" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. The Z v.6 now uses the same voice coil as the NS v.5 series. The Z v.5 utilized a 4-layer voice coil – the change to an 8-layer was to answer our customers desire for higher motor force (more output) and it does just that! Based on Sundown's years of experience with the Z v.4 and Z v.5 series we've also improved the voice coil ventilation to be even more effective. The Z v.6 features a high-velocity pole vent, a heavily vented magnetic gap, and (all new for the v.6) machined channels in four places around the pole piece itself. The Z v.6 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that are commonly used for for Sundown Audio's subwoofers, although, they can be used with enclosures up to about 50% larger than those if you desire even more low-end extension. The Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion. Features Power Handling:3250 Watts RMS / 6500 Watts Peak Xmax = 35mm one-way by 70% BL Heavily vented magnetic gap Spring Loaded Terminals Optimized high-velocity pole vent Innovative high-velocity cast-aluminum vented frame spacer ring Black aluminum 3 inch 8-layer voice coil Mega-Roll v.2 surround Custom tooled basket Large aluminum Faraday (shorting) Ring Stitched-On XL Tinsel Leads to prevent fatigue and failure Custom-tooled ultra-linear spider packs Enclosure Designs .Zip File

Read more less

The Z v.6 is the second step up in Sundown's "ultra-high excursion" subwoofer lineup after the X v.3 series and replaces the world-famous Z v.5 series. All models (10,12,15,18) feature our custom tooled and patented frames (US Patent Numbers D691596, D691597, D691598, and D741841). Sundown mates these new platform frames to a quad stacked 240mm (9.45”) diameter motor structure with a total magnet stack height of 100mm (3.94”) featuring a hyper-extended pole and extreme clearances (allowing over 4" p-p travel before mechanical bottom effectively making it bottomless). Compared to the X v.3 motor both the top & back plates are thicker allowing for even more magnetic strength and excursion potential. For the Z v.6 the top plate is another 5mm thicker than even the outgoing Z v.5 series! This motor drives a 3" diameter 8-Layer Flat Wire Aluminum Voice Coil wound on a thick aluminum former to incredible levels of excursion. The Z v.6 now uses the same voice coil as the NS v.5 series. The Z v.5 utilized a 4-layer voice coil – the change to an 8-layer was to answer our customers desire for higher motor force (more output) and it does just that! Based on Sundown's years of experience with the Z v.4 and Z v.5 series we've also improved the voice coil ventilation to be even more effective. The Z v.6 features a high-velocity pole vent, a heavily vented magnetic gap, and (all new for the v.6) machined channels in four places around the pole piece itself. The Z v.6 series was designed from the ground-up to become the new standard in the low-frequency / small ported box subwoofer category in this price range. They will work in the same small enclosures that are commonly used for for Sundown Audio's subwoofers, although, they can be used with enclosures up to about 50% larger than those if you desire even more low-end extension. The Z v.6 series is really a different kind of woofer due to its incredibly linear suspension. They are designed for the LOWEST level of bass extension possible in a small enclosure while maintaining extremely low levels of distortion. Features Power Handling:3250 Watts RMS / 6500 Watts Peak Xmax = 35mm one-way by 70% BL Heavily vented magnetic gap Spring Loaded Terminals Optimized high-velocity pole vent Innovative high-velocity cast-aluminum vented frame spacer ring Black aluminum 3 inch 8-layer voice coil Mega-Roll v.2 surround Custom tooled basket Large aluminum Faraday (shorting) Ring Stitched-On XL Tinsel Leads to prevent fatigue and failure Custom-tooled ultra-linear spider packs Enclosure Designs .Zip File

Read more less
