Audio Ace
-

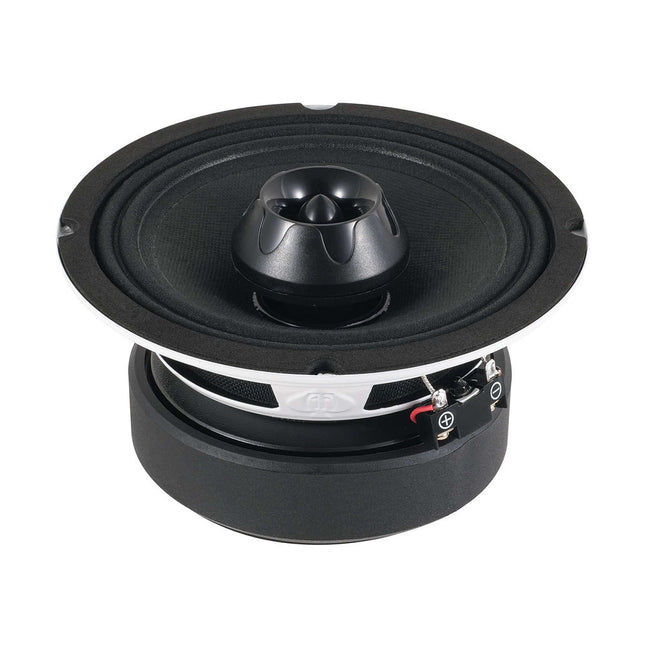

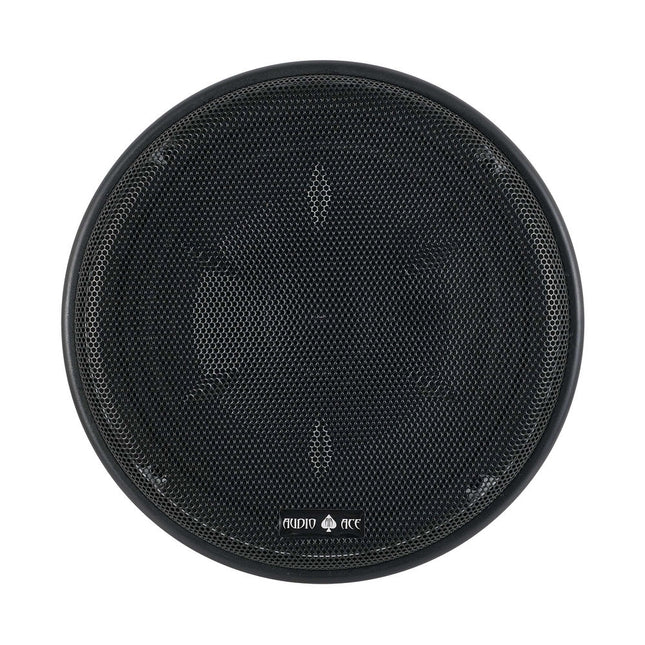

Audio Ace Diamond X65 6.5" 150W RMS 4-Ohm PAIR Car Audio Coaxial Speakers
The new Audio Ace Diamond X65 is a high efficiency coaxial that can conservatively handle 150 RMS each. 4 Ohm SOLD IN PAIRS
$109.00
-

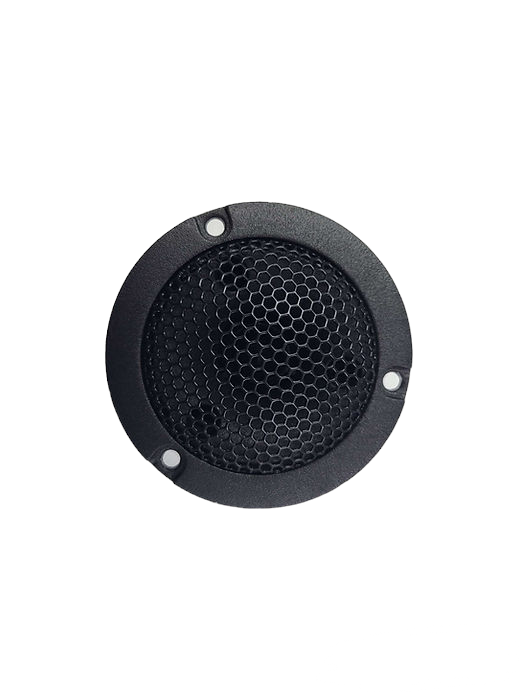

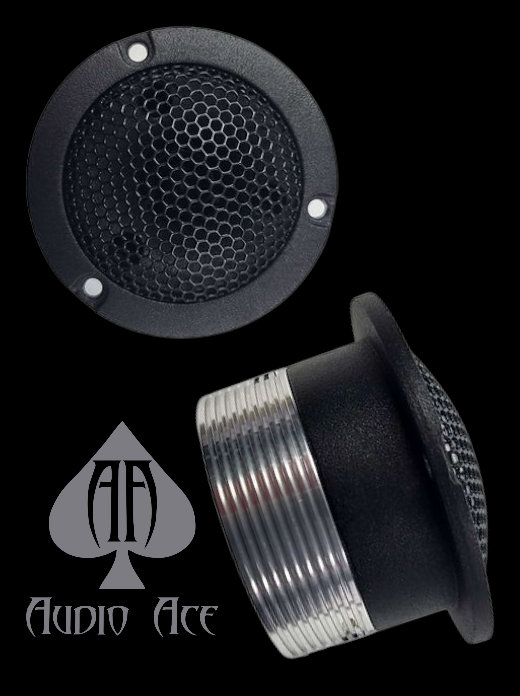

Audio Ace Diamond 1.1" Titanium Tweeters - 100W RMS (Pair)
Product Overview: Extreme SPL Tweeters with Sound Quality Focus The Audio Ace Diamond 1.1 Tweeters are engineered to excel in extreme Sound Pressure Level (SPL) environments while still maintaining a level of sound quality that improves any large SPL build. Sold as a pair, these tweeters feature a 1-inch titanium diaphragm and a powerful Neodymium (Neo) magnet motor. They boast a robust 100W RMS rating, ensuring they can keep up with powerful mid-range and subwoofer systems. Designed for high volume and clarity, the Diamond 1.1 is the ideal choice for serious competitors and enthusiasts building high-output audio systems. AUDIO ACE DIAMOND 1.1 TWEETER SPECIFICATIONS (PAIR) Type Tweeter (Titanium Diaphragm) Nominal Diameter 1 Inch RMS Power Handling 100 Watts Sensitivity (SPL) 105 dB Magnet Type Neodymium Overall Diameter 3 Inches Mounting Diameter 2.25 Inches Mounting Depth 1 3/8 Inches
$59.00
-
Audio Ace Diamond 6x9″ Mid‑Range Speaker Pair - 150W RMS, 4 Ω
Product Overview: Oval Excellence for Car Audio Mid-Range The Audio Ace Diamond 6×9" mid-range speaker is designed to bring the powerful, high-efficiency characteristics of a Pro Audio PA-style driver into the popular 6×9" format, making it ideal for factory mounting locations in many vehicles. Sold as a pair, these speakers are engineered to handle 150W RMS and deliver exceptional volume, boasting a high 96 dB sensitivity. They feature a 38.6mm voice coil and a custom-tooled basket with the Audio Ace logo. With a nominal impedance of 4 Ohms and a functional frequency range of 87 Hz to 3.5 kHz, the Diamond 6×9" is built to provide a powerful and clear mid-frequency punch. AUDIO ACE DIAMOND 6x9" MID RANGE SPEAKER SPECIFICATIONS (PAIR) Size 6x9 Inches RMS Power Handling 150 Watts Nominal Impedance 4 Ohms Voice Coil Diameter 38.6 mm Sensitivity 96 dB Frequency Range 87 - 3.5k Hz
$89.00
-

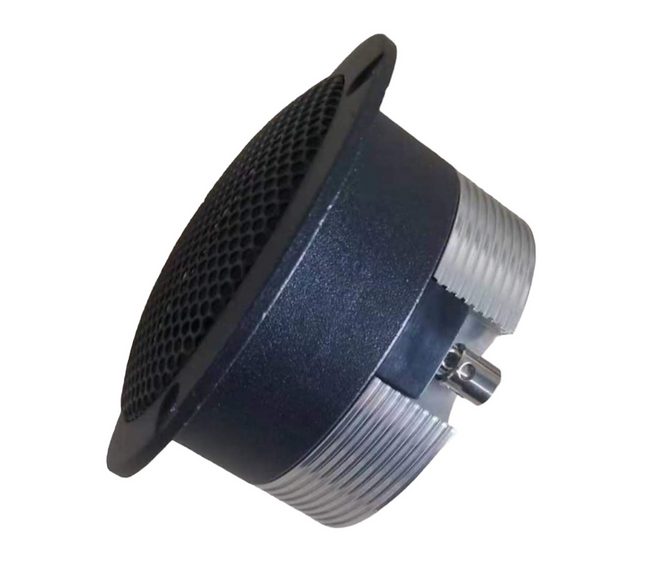

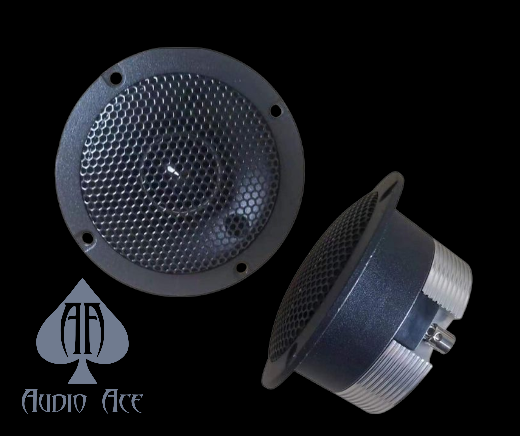

Audio Ace Diamond 1.2" Titanium Tweeters - 100W RMS (Pair)
Product Overview: High-Performance Neodymium Tweeter The Audio Ace Diamond 1.2 Tweeter is a popular and potent high-frequency driver, now back and ready to deliver crisp, detailed highs to your audio system. Sold in pairs, these tweeters are rated at a substantial 100W RMS and utilize a powerful Neodymium motor for high efficiency and precise sound reproduction. Designed with a wide sound dispersion profile and protected by a durable grill, the Diamond 1.2 is built for both performance and reliability. With a 4 Ohm impedance and convenient push terminals, installation is straightforward for adding detailed high-end to any setup. AUDIO ACE DIAMOND 1.2 TWEETER SPECIFICATIONS (PAIR) Type Tweeter RMS Power Handling 100 Watts Nominal Impedance 4 Ohms Motor Type Neodymium Features Protective Grill, Push Terminals, Wide Sound Dispersion Design Overall Diameter 3.75 Inches Mounting Depth 1.75 Inches Mounting Diameter 2 7/8 Inches
$79.00
-

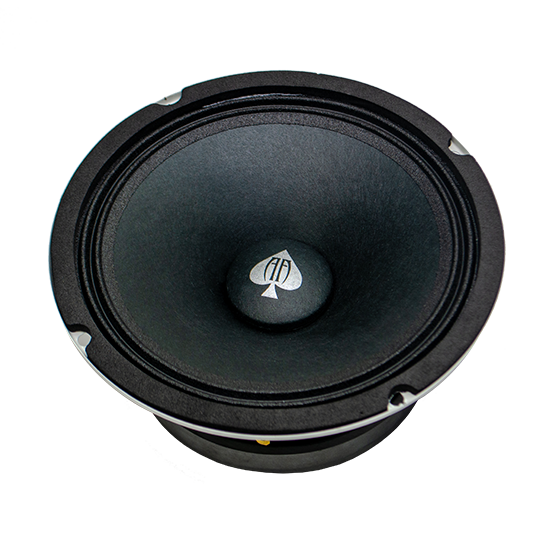

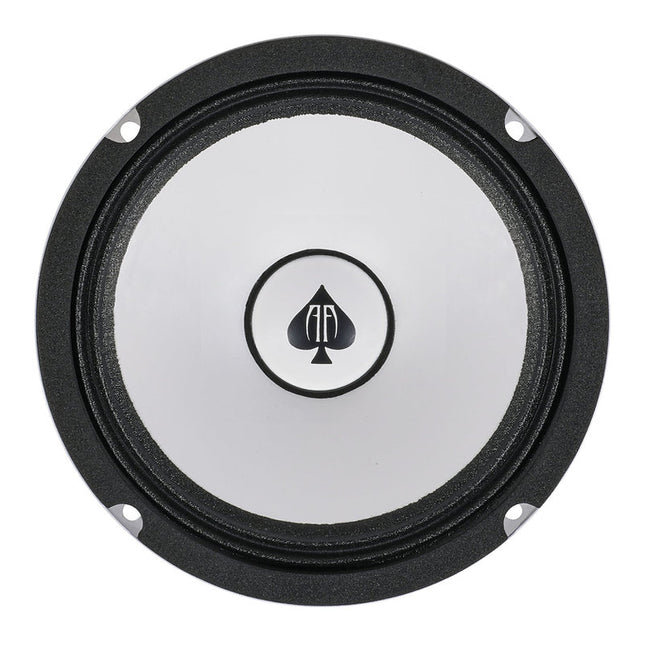

Audio Ace Diamond 6.5″ Mid‑Range Car Speaker - 150 W RMS, 4 Ω
Product Overview: High-Output Mid-Range for Car Audio The Audio Ace Diamond 6.5" is a specialized mid-range speaker that brings the high volume and efficiency of a Pro Audio PA-style driver into your vehicle. Sold as a pair, these speakers are built to be loud, handling 150W RMS and featuring an impressive 96 dB Sensitivity (SPL) to maximize output from your amplifier's power. They feature a 1.5-inch voice coil and a 26 oz motor housed in a custom-tooled basket with the Audio Ace logo. The 4 Ohm impedance and a wide frequency range of 90 Hz to 13 kHz make them an excellent choice for dominating the mid-frequency band. Available in black or white to match your installation aesthetic. AUDIO ACE DIAMOND 6.5" MID RANGE SPECIFICATIONS (PAIR) Size 6.5 Inches RMS Power Handling 150 Watts Nominal Impedance 4 Ohm Voice Coil 1.5 Inch Motor Weight 26 oz Sensitivity (SPL) 96 dB Frequency Range 90 - 13k Hz Maximum Excursion (Xmax) 1.25 Overall Diameter 6 5/8 inches Available Colors Black or White THIELE-SMALL PARAMETERS Electrical Q (Qes) 0.452 Mechanical Q (Qms) 3.051 Total Q (Qts) 0.394 Resonance Frequency (Fs) 95 Hz Effective Piston Area (SD) 143.34 DC Resistance (Re) 4 Ohms BL Factor (BL) 7.035
$79.00
-

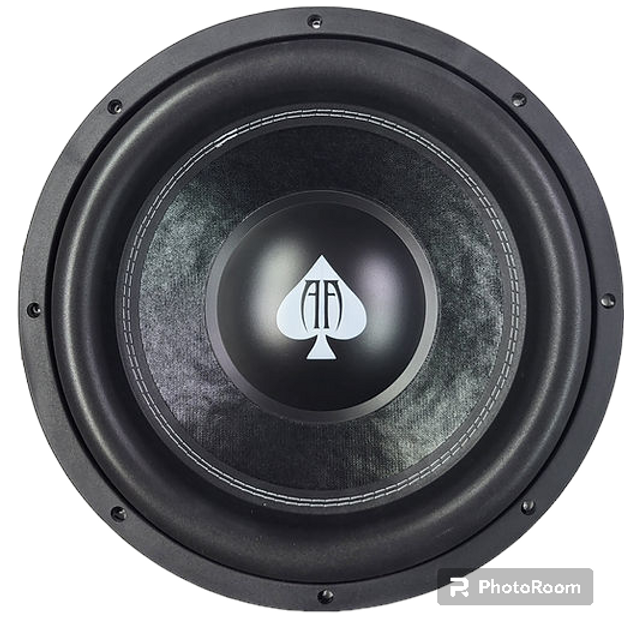

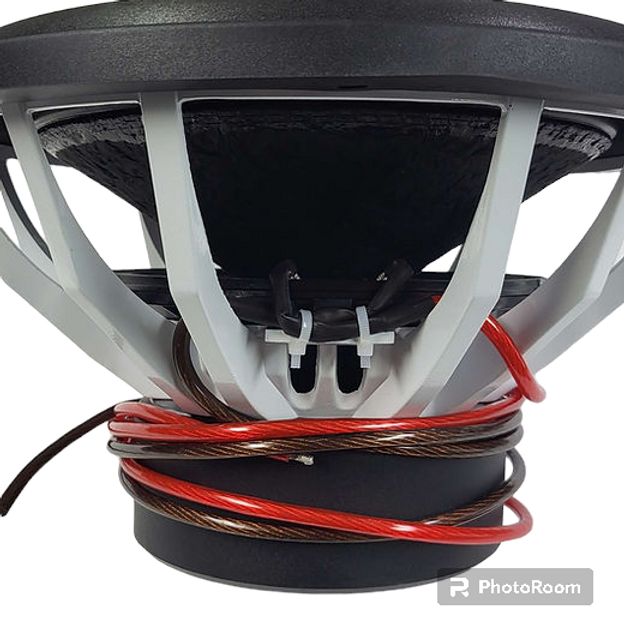

Audio Ace Joker v3 15" 1500W RMS Dual-2-Ohm Subwoofer
Don't let the name fool you! The Joker is NO JOKE and is one of our most popular subwoofers! From Mild to Wild the Joker is a great performing subwoofer! Boasting a conservative 1500 Wrms rating this subwoofer is going to OUTperform your expectations. Works great in Sealed, Ported, AND bandpass enclosures! Size 15 Inch Wide Roll Surround Coil Size 3 Inch 4 Layer Epoxy High Temp High Efficiency 168oz FEA Optimized Magnet Motor Non Pressed Pulp Cone with Foam Surround Impedance Dual 2 Joker Specs RMS: 1500W FS: 30 hz RE: 1.8+1.8 Ohms Sd: 779.31 BL:20.145 Qms: 5.514 Qes: .701 Qts: .622 SPL Sensitivity: 85db Mounting Depth 7.75 Inches Cutout 13.819 Box Recommendation 2.5 cubic foot sealed 2.75-3.25 cubic foot ported 12-14 square inches of port per cubic foot 34-38hz tuning Sealed, Ported, 4th order and 6th order friendly
$239.00
