Product Overview: High-Output Mid-Range for Car Audio

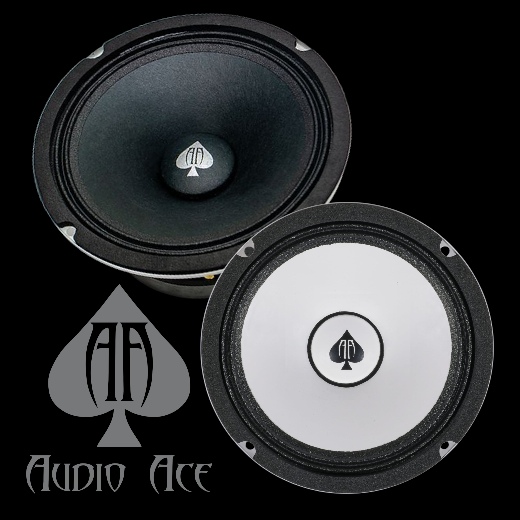

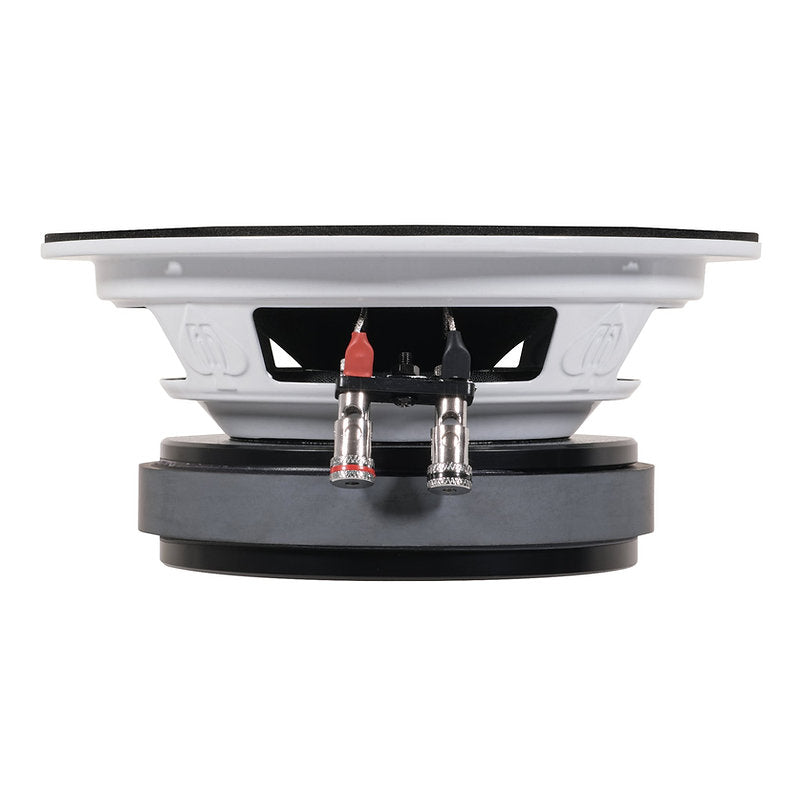

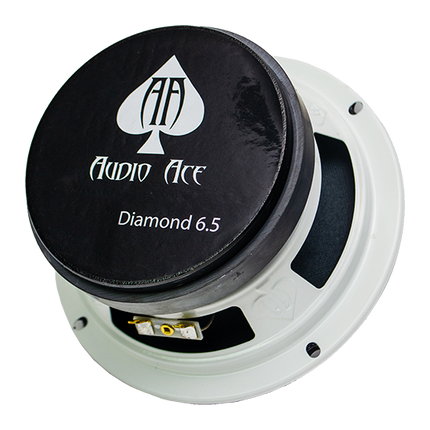

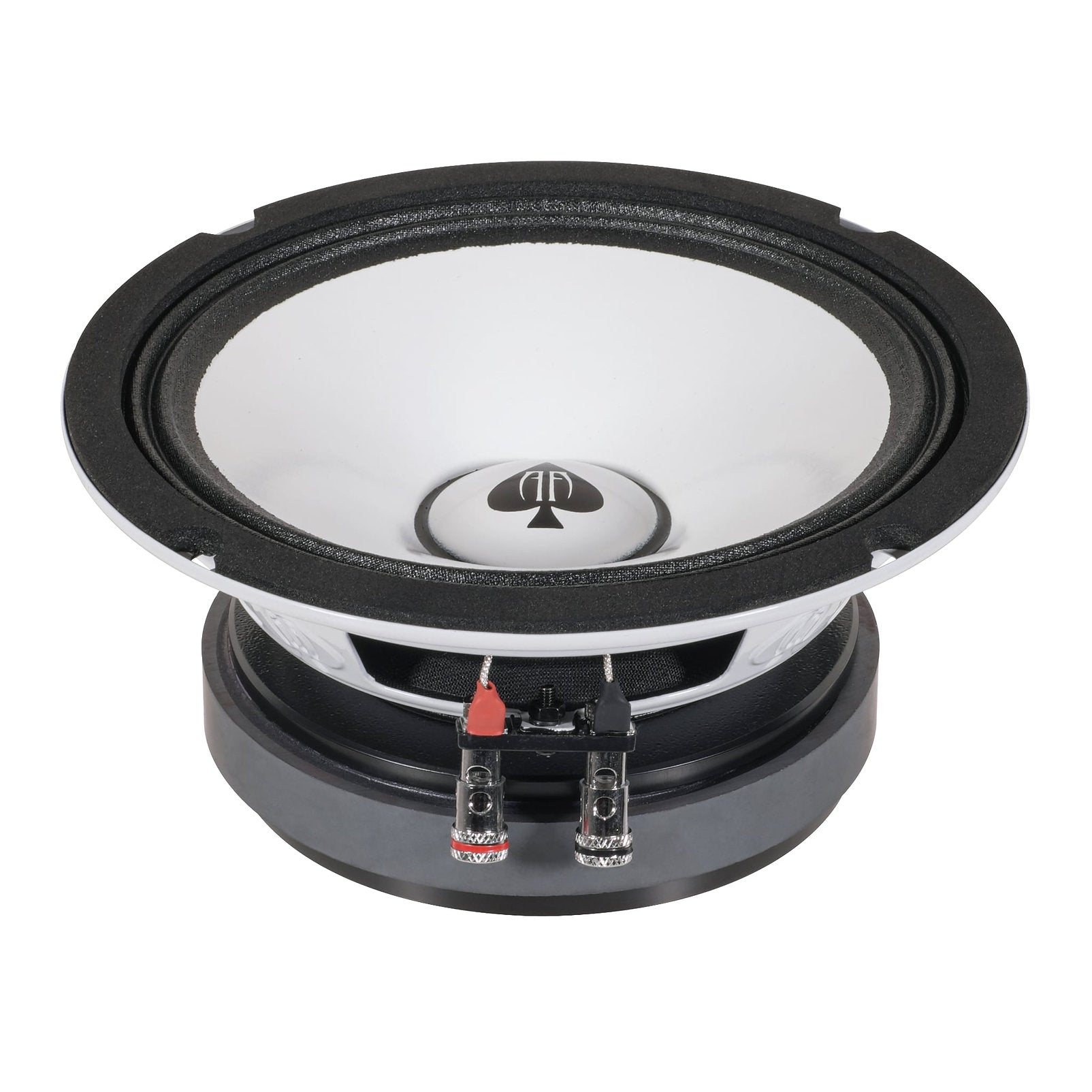

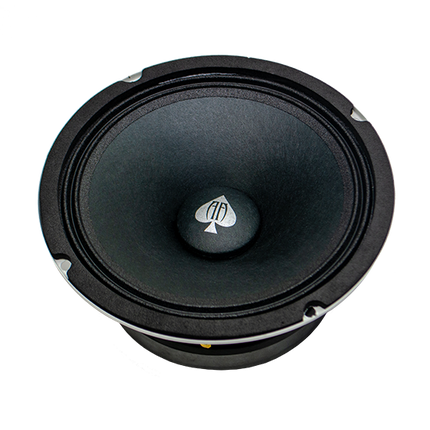

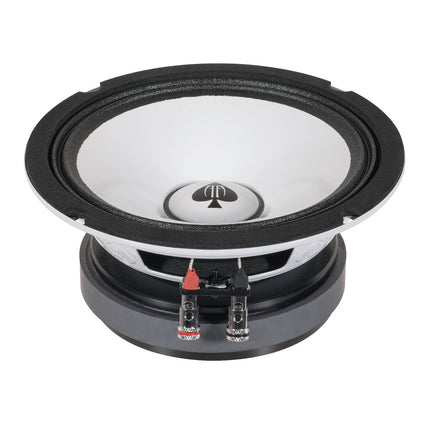

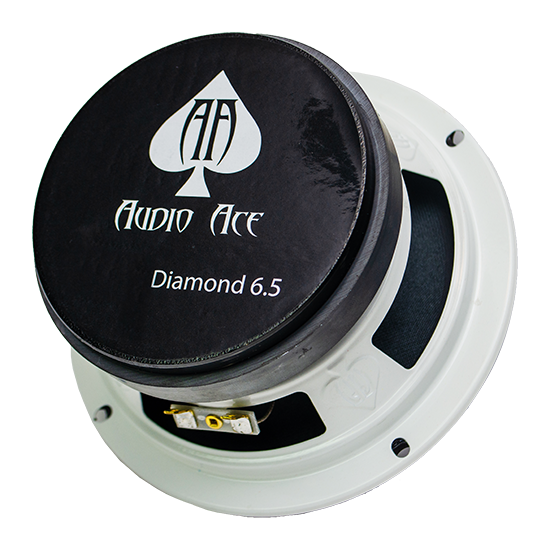

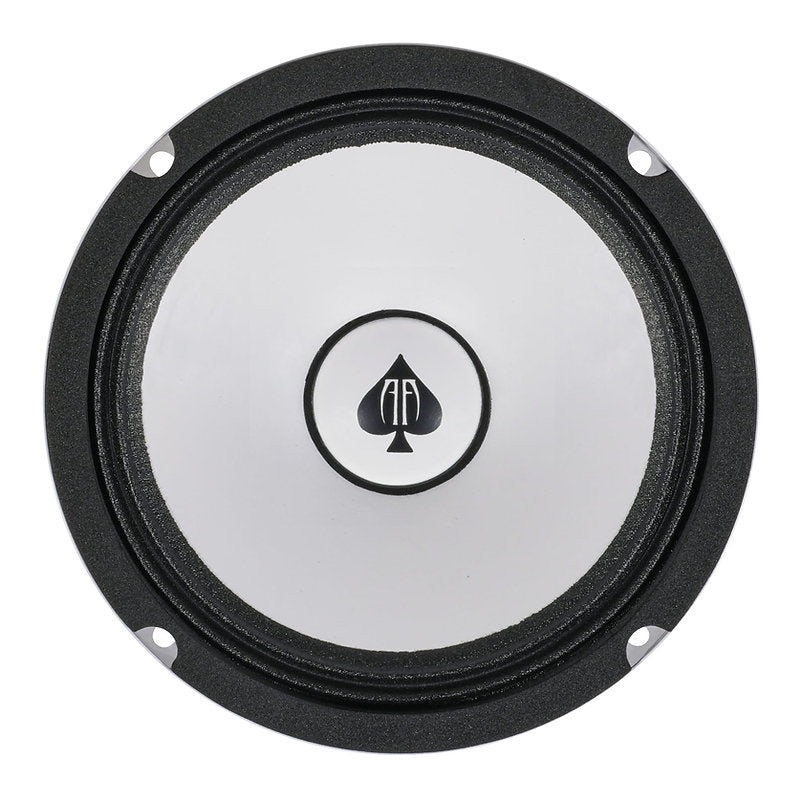

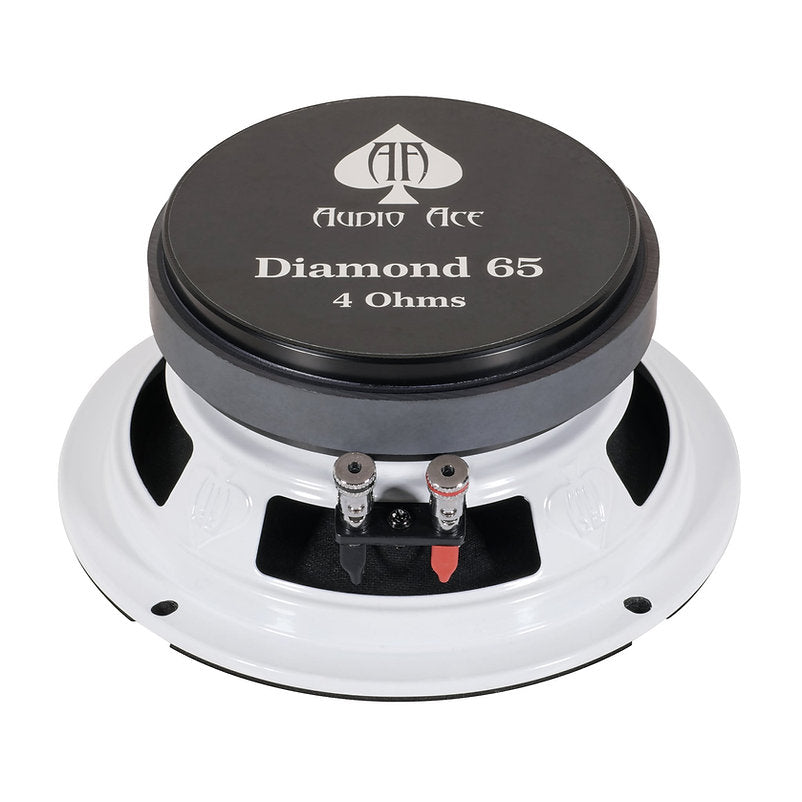

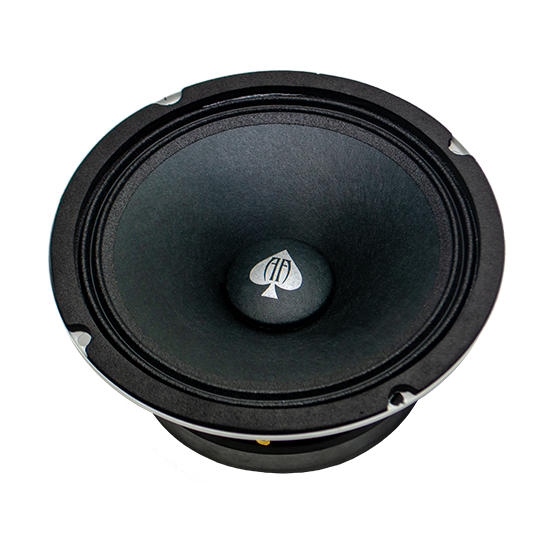

The Audio Ace Diamond 6.5" is a specialized mid-range speaker that brings the high volume and efficiency of a Pro Audio PA-style driver into your vehicle. Sold as a pair, these speakers are built to be loud, handling 150W RMS and featuring an impressive 96 dB Sensitivity (SPL) to maximize output from your amplifier's power. They feature a 1.5-inch voice coil and a 26 oz motor housed in a custom-tooled basket with the Audio Ace logo. The 4 Ohm impedance and a wide frequency range of 90 Hz to 13 kHz make them an excellent choice for dominating the mid-frequency band. Available in black or white to match your installation aesthetic.
| AUDIO ACE DIAMOND 6.5" MID RANGE SPECIFICATIONS (PAIR) |
| Size |
6.5 Inches |
| RMS Power Handling |
150 Watts |
| Nominal Impedance |
4 Ohm |
| Voice Coil |
1.5 Inch |
| Motor Weight |
26 oz |
| Sensitivity (SPL) |
96 dB |
| Frequency Range |
90 - 13k Hz |
| Maximum Excursion (Xmax) |
1.25 |
| Overall Diameter |
6 5/8 inches |
| Available Colors |
Black or White |

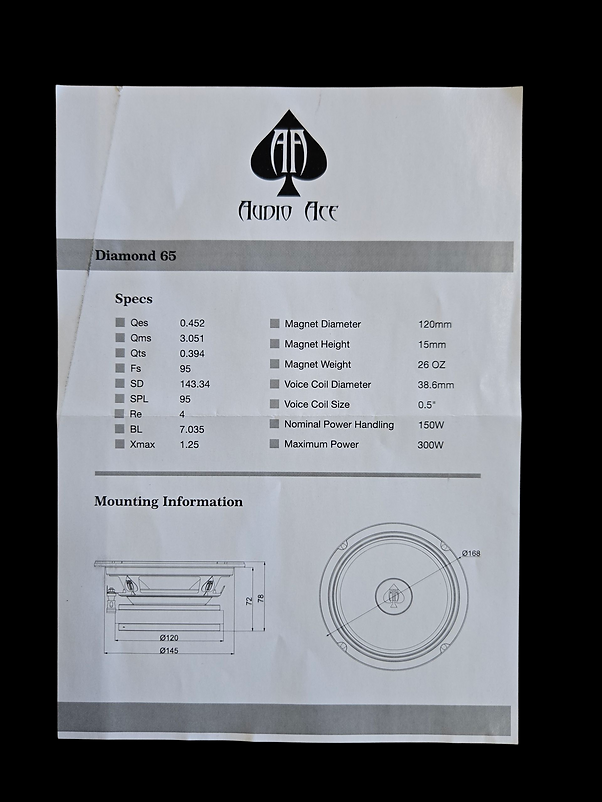

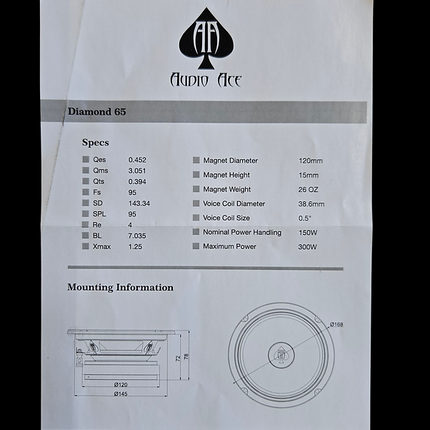

| THIELE-SMALL PARAMETERS |
| Electrical Q (Qes) |
0.452 |
| Mechanical Q (Qms) |
3.051 |
| Total Q (Qts) |
0.394 |
| Resonance Frequency (Fs) |
95 Hz |
| Effective Piston Area (SD) |
143.34 |
| DC Resistance (Re) |
4 Ohms |
| BL Factor (BL) |
7.035 |
