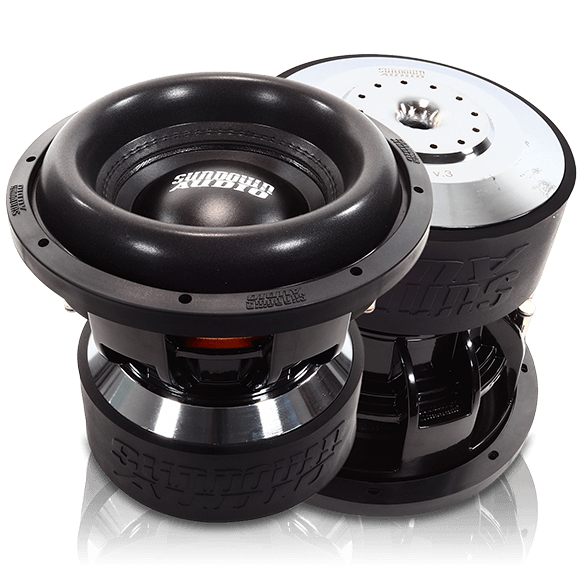

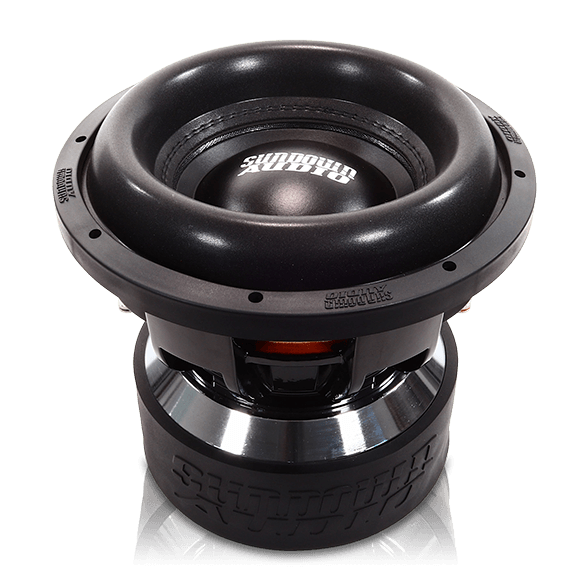

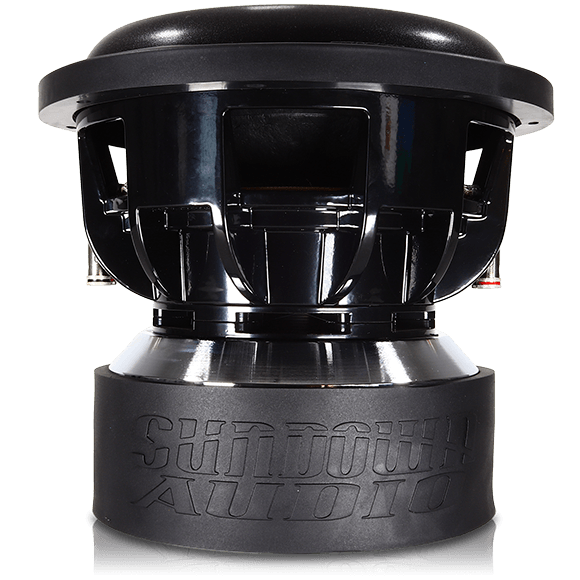

Sundown Audio X-Series v.3 10" Subwoofer

$629.99 USD
$629.99 USD
Sale Sold out
Shipping calculated at checkout.

Free Lanyard and Stickers With Every Purchase

Full Manufacturer Warranty On All Products

Impedance: D2
In Stock, Ready To Ship!
  • Multiple Financing Options
  • Expert Support Before and After Purchase
  • Free Shipping On Orders $75+
  • Full Warranty On Every Product

About the Product

  • RMS 2000 watts
  • Dual 1 or 2 ohm voice coil
  • Made for extremely deep bass
  • Triple-stacked magnet
  • 3” voice coil
  • Hyper-extended pole
  • Built to order

Designed with an extended pole piece and an incredible four inches of peak-to-peak excursion, the X v.3 is engineered for ultra-deep bass and high power handling. Engineered to set a new standard in the low-frequency/small-ported-box subwoofer category, the X Series can also work in up to a 50% larger enclosure if you desire even more low-end extension.

The X v.3 series differentiates itself with its incredibly linear suspension, ensuring the lowest level of bass extension in a small enclosure while maintaining extremely low levels of distortion. Notably, the v.3 series features a much larger motor structure (220mm vs. 190mm on the v.1 series), improved motor ventilation, and an all-new Mega-Roll v.2 surround, providing a more linear and rugged update to the world-famous Mega-Roll v.1 surround design.

Specifications

T/S SPECS X V.3 10″ D1 X V.3 10″ D2
RE (Ohms) 1.4 3.2
FS (Hz) 39.104 40.208
VAS (L) 11.623 9.352
Qes 0.441 0.528
Qms 2.567 2.842
Qts 0.376 0.445
Le (mH)
BL (NA) 14.155 21.509
Mms (Grams) 256.970 302.089
Cms (uM/N) 64.465 51.867
Sens (dB @ 1w/1m) 83.8dB 82.5dB

Enclosure Specifications

X v.3 8 X v.3 10 X v.3 12 X v.3 15 X v.3 18
Sealed Enclosure 0.3-.04cuft N/A N/A N/A N/A
Ported Enclosure 0.75-1.0 cu ft 1.5 cu ft 2.5 cu ft 4.25 cu ft 7.00 cu ft
Recommended Tuning 32hz 32hz 32hz 32hz 32hz
Recommended Port Area 12-16 sq in 24 sq in 40 sq in 68 sq in 112 sq in
Displacement 0.13 cu ft 0.21 cu ft 0.2 cu ft 0.22 cu ft 0.23 cu ft
Depth 6.8" 9.4" 10.4" 11.6" 13.6"
Outside Diam. 8.70" 11.65" 12.68" 15.51" 18.42"
Cutout 7.36" 10.01" 11.09" 13.83" 16.69"
Physical Dimensions Download Download Download Download Download
