Description

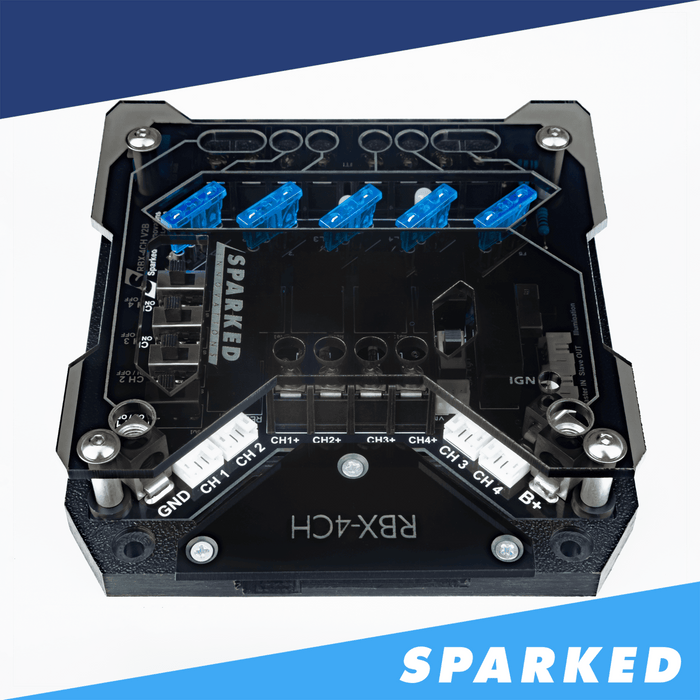

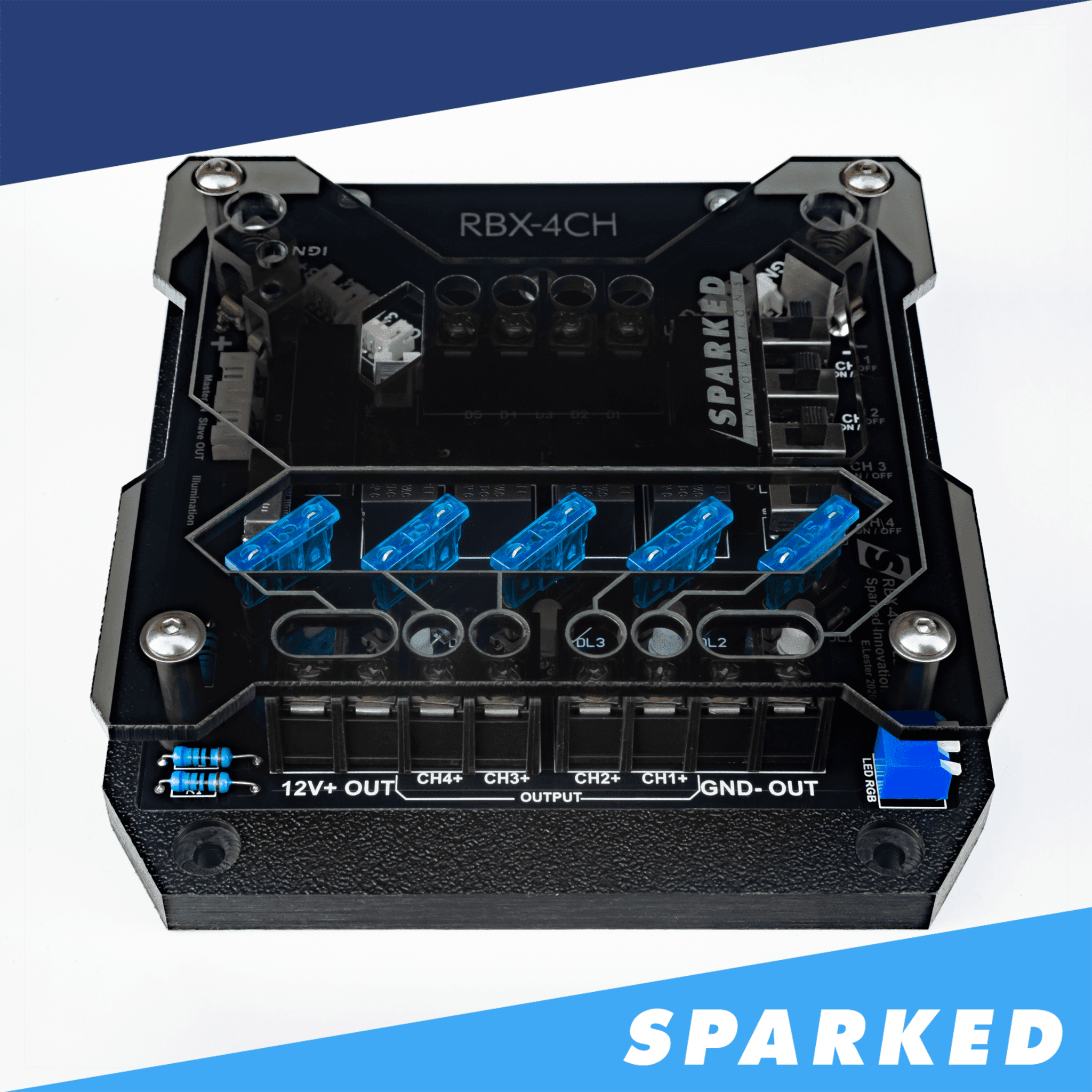

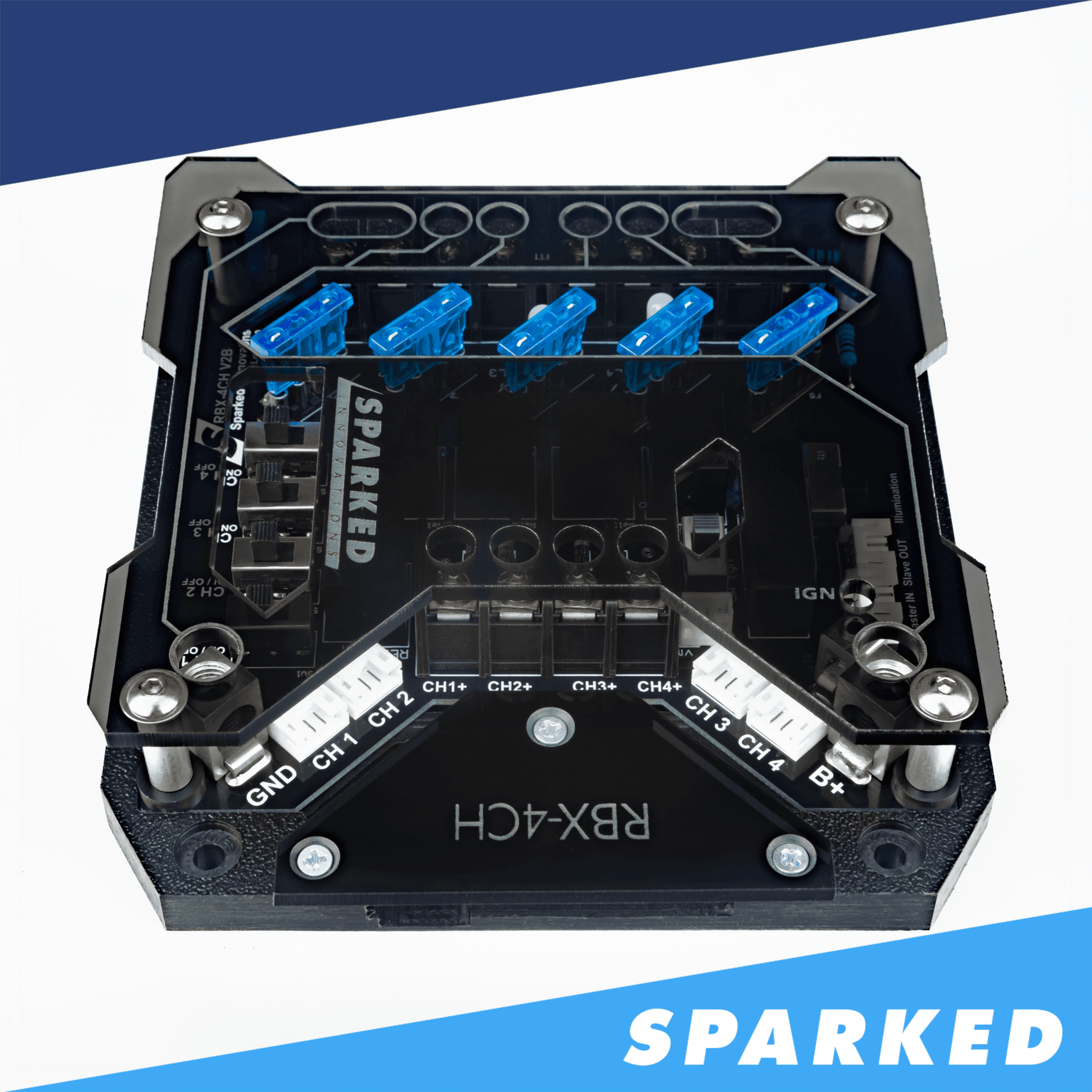

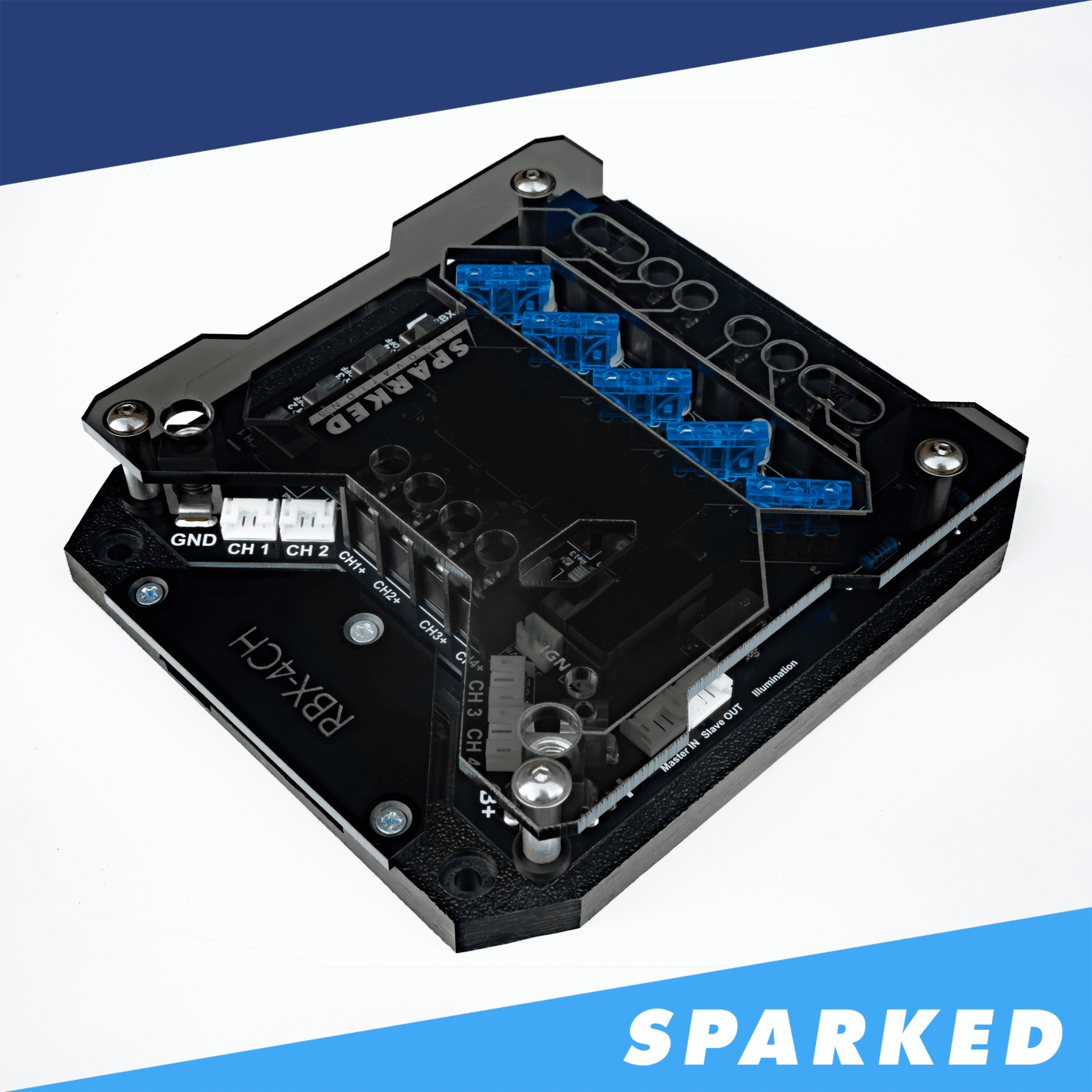

RBX-4CH Four-Channel SPDT Relay Box Special Black Edition

Name: Sparked Innovations RBX-4CH Black Edition 12VDC 4-Channel Relay Box
Brand: Sparked Innovations
SKU: SPARKED-RBX-4CH-SE
Price: 149.99 USD
Rating: 5.0 (1 reviews)

New Special Edition Black PCB with all the same features and functionality as our very successful self-contained four-channel 12VDC relay box You may use a fifth switch and wire harness connected to the Master input to control the entire on/off functionality of the relay box. Alternatively, you may hook an accessory wire from your vehicle’s ignition to the IGN input for easy remote turn-on capability. You also get ignition interrupt and master/slave functionality.

12VDC voltage range	9~18VDC
Dimensions	1.20"H, 5.20"W, 6.00"L
Remote Input	Positive (+)
Switched Channels	4
Non-Switched Channels	1
Total Peak Current Capacity	90A
Total Continuous Current Capacity	75A
Current Capacity Per Channel	15A
Fuses	5 x 15A ATC
Power Wire Input Gauge	4~10 AWG
Remote Input Terminals	10~22 AWG Fork Terminals or Bare Wire
Output Terminals	10~22 AWG Fork Terminals or Bare Wire
Weight	12.2 oz
Manufacturer	Sparked Innovations, LLC
