Description
The Apex of 12-Inch Subwoofer Engineering

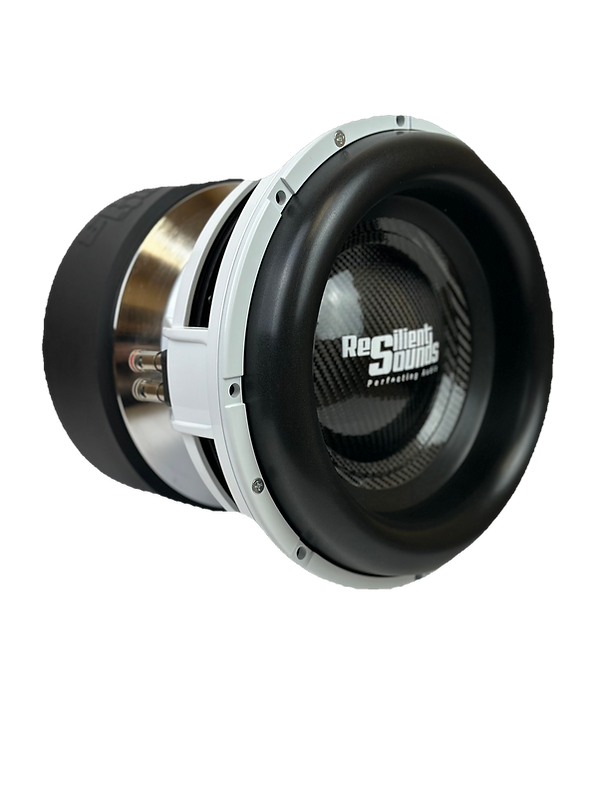

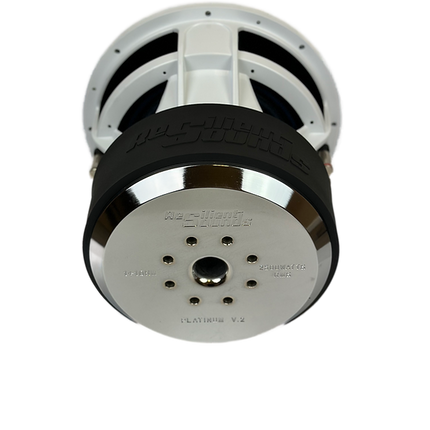

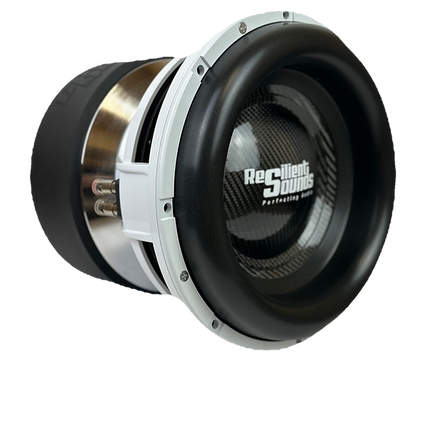

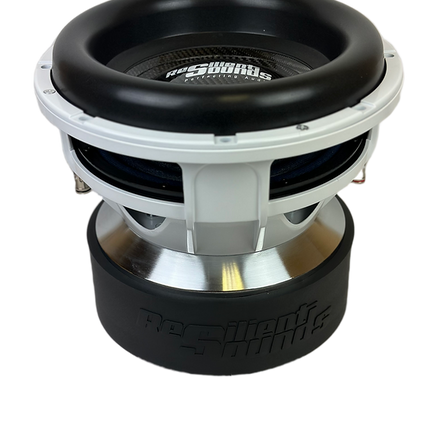

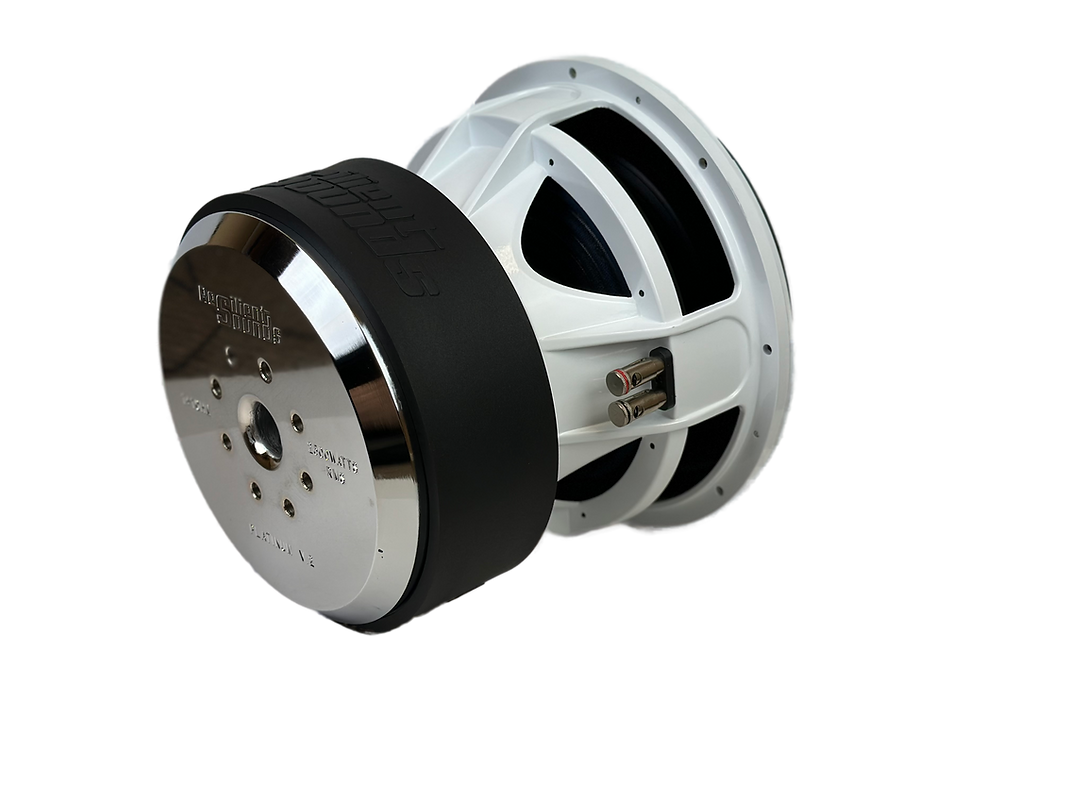

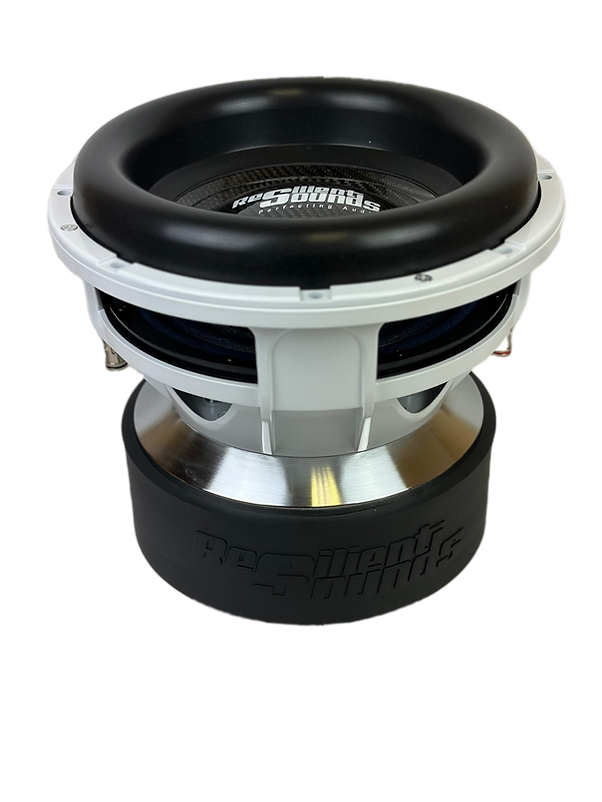

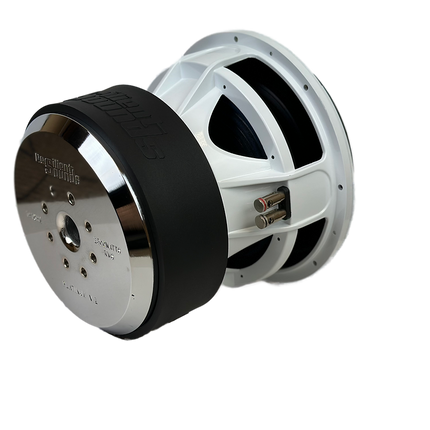

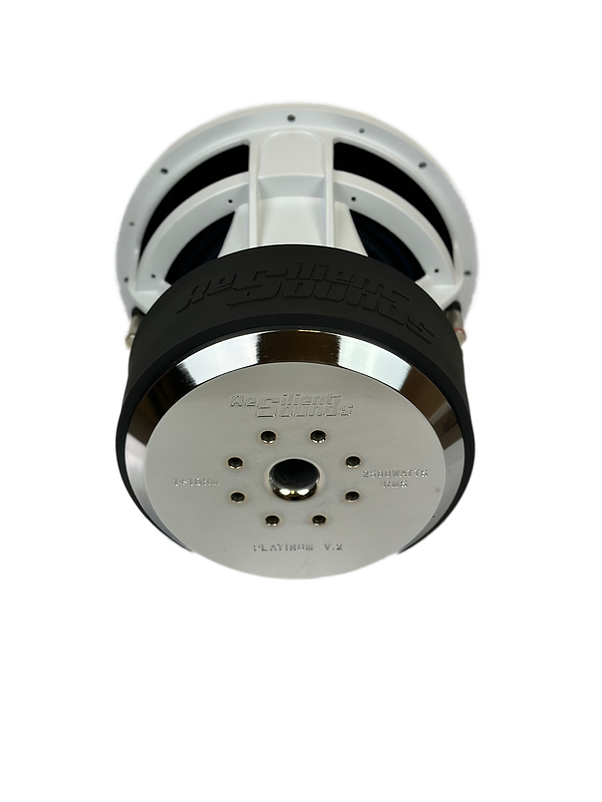

The Resilient Sounds PLATINUM V2 12" D2 sets a new standard for high-performance subwoofers, engineered for enthusiasts who demand extreme output and reliability. Conservatively rated at a monstrous 500W RMS (5,000 Watts Peak), this 12-inch driver features a 13% larger motor and a 20% longer 3-inch 8-layer voice coil compared to the V1, resulting in up to a 50% increase in motor force (BL²/Re). The Dual 2 Ohm impedance provides flexible wiring for 1 Ohm or 4 Ohm final loads. Combined with a massive 35mm XMAX, a 10-inch spider pack, and a premium carbon fiber cone, this subwoofer delivers clean, chest-thumping bass designed to dominate.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
Platinum 12 V2 |
| Nominal Impedance |
Dual 2 Ohm (D2) |
| RMS Power Handling (Conservative) |
2,500 Watts |
| Peak Power Handling |
5,000 Watts |
| Maximum Excursion (XMAX) |
35MM |
| Voice Coil |
3-inch 8 Layer (20% Longer than V1) |

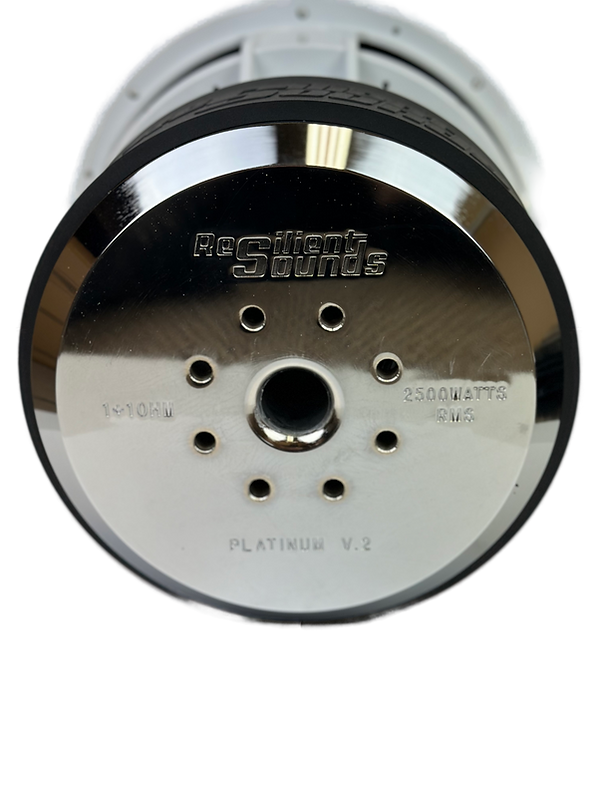

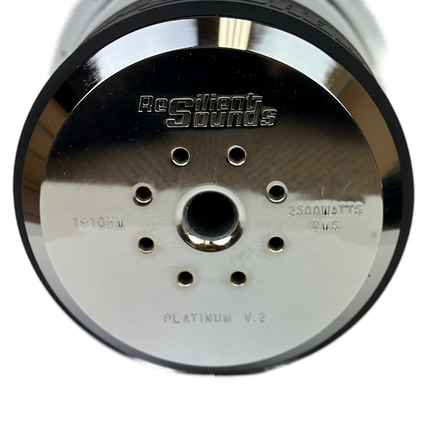

| Motor Structure |
13% Larger Motor, XL Triple Stacked |

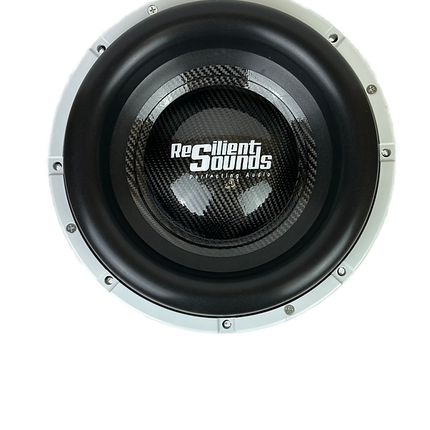

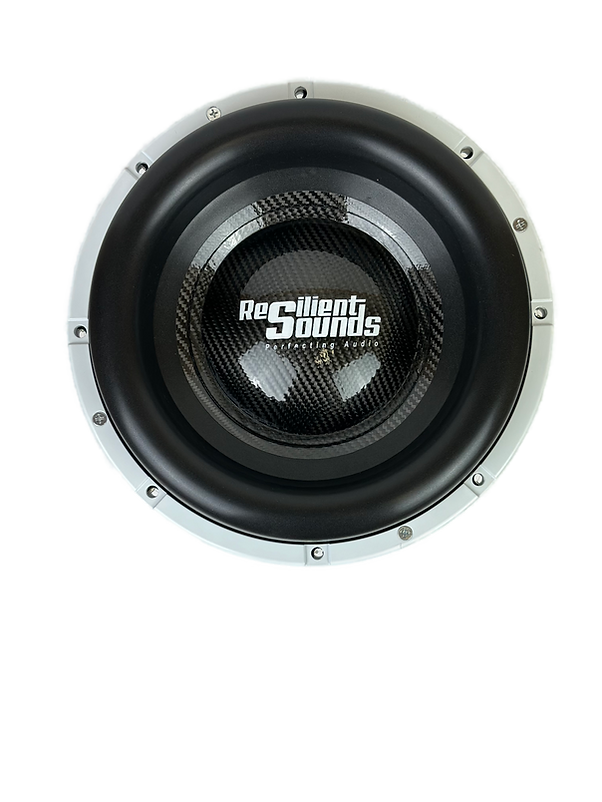

| Cone / Dust Cap |
Carbon Fiber |
| Surround |
New High Roll Tooled Surround |

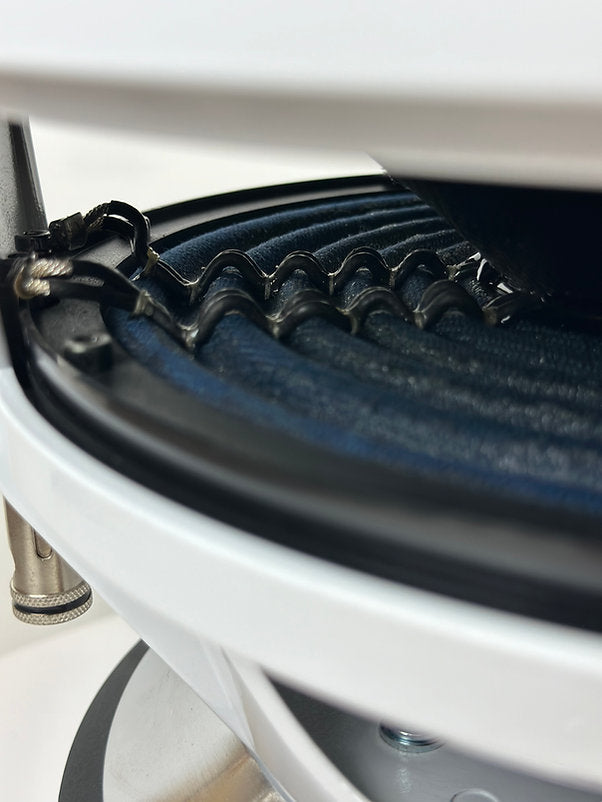

| Spider / Leads |

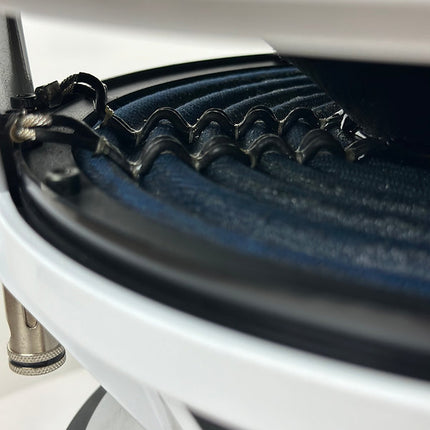

10" Spider Pack with Insulated Dual Leads |
| Frame/Basket |
Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
2.00 - 3.00 CU FT |
| Tuning Frequency |
28 - 33 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
10.25 INCHES |
| Cutout Diameter |
11.175 INCHES |
| Displacement |
0.25 CU FT |
