Description
Competition-Ready Low-Impedance Powerhouse

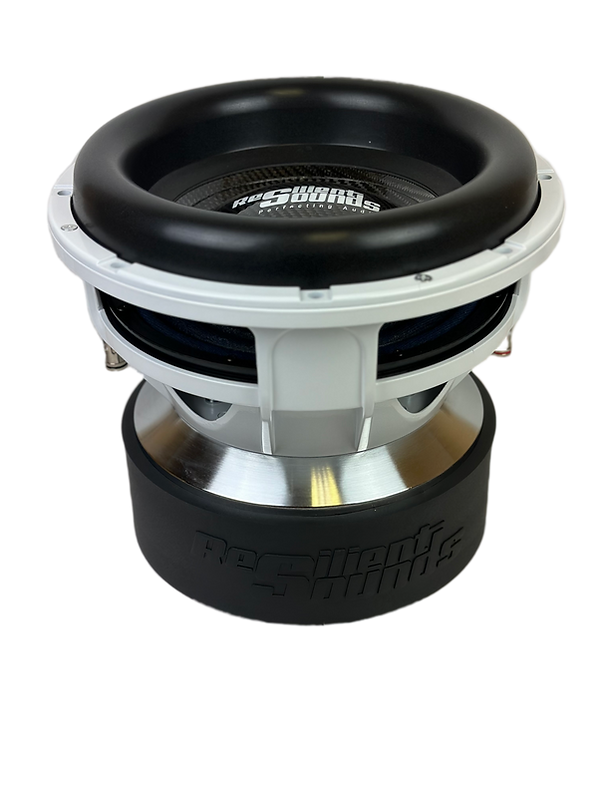

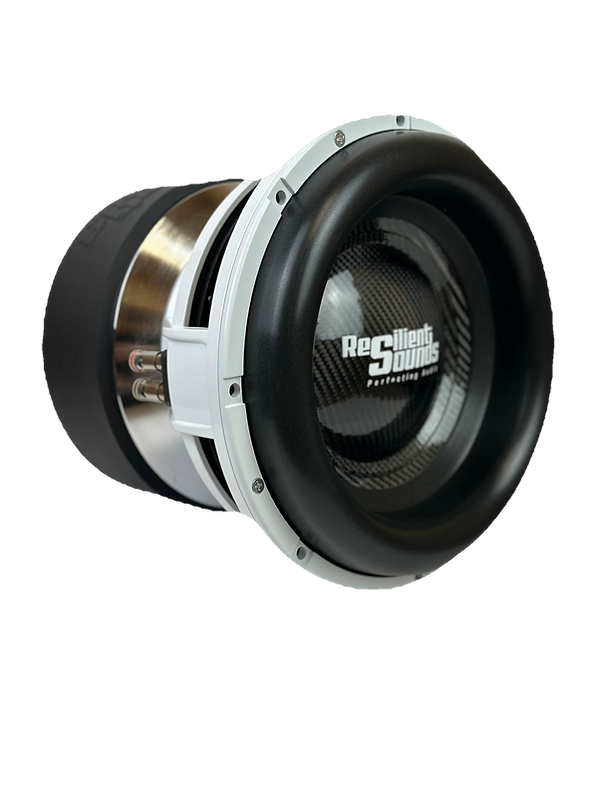

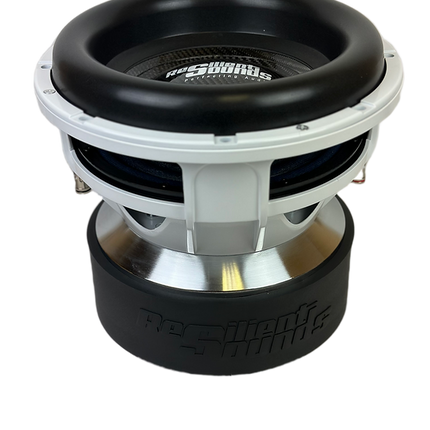

The Resilient Sounds PLATINUM V2 12" D1 is purpose-built for competition and extreme daily driving, where maximizing amplifier output with a low impedance load is essential. This 12-inch subwoofer maintains a conservative 2,500W RMS power rating and features a 13% larger motor with a 3-inch 8-layer voice coil that is 20% longer than its predecessor, delivering incredible motor force and thermal capacity. The Dual 1 Ohm impedance is the ultimate configuration for achieving an ultra-low 0.5 Ohm final load when wired in parallel, catering to the most powerful, low-impedance stable amplifiers on the market. Its 35mm XMAX and carbon fiber cone ensure both power and fidelity are maximized.
TECHNICAL SPECIFICATIONS
| Specification |
Detail |
| Model |
Platinum 12 V2 |
| Nominal Impedance |
Dual 1 Ohm (D1) |
| RMS Power Handling (Conservative) |
2,500 Watts |
| Peak Power Handling |
5,000 Watts |
| Maximum Excursion (XMAX) |
35MM |
| Voice Coil |
3-inch 8 Layer (20% Longer than V1) |

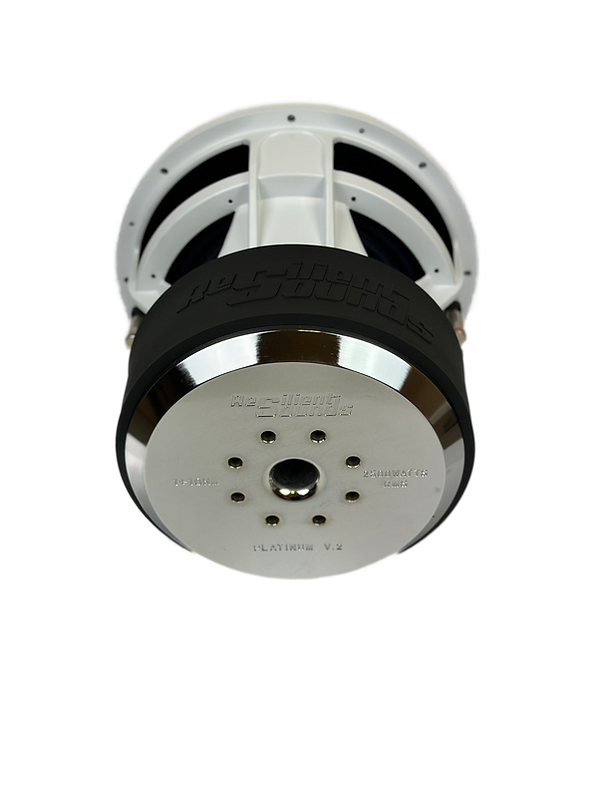

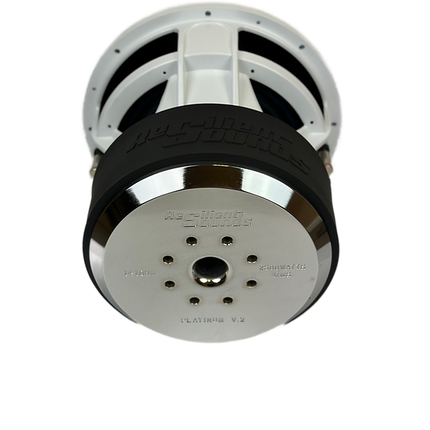

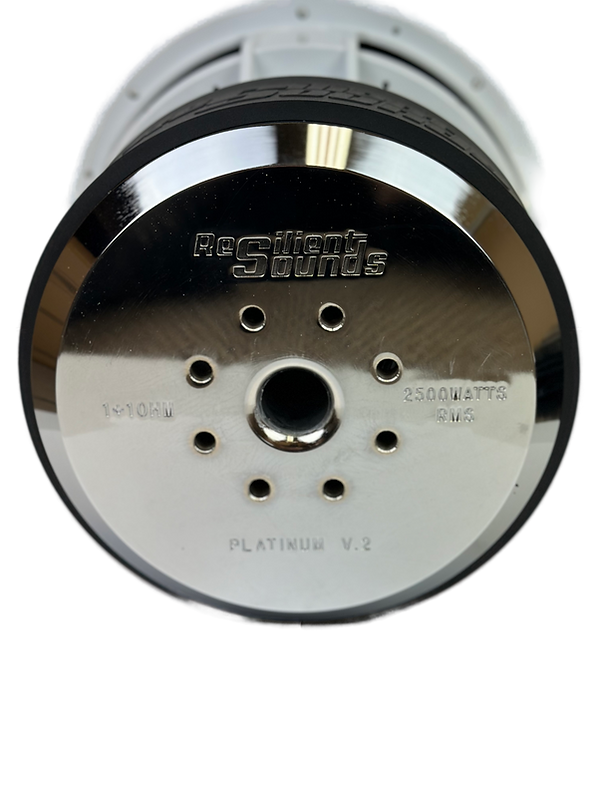

| Motor Structure |

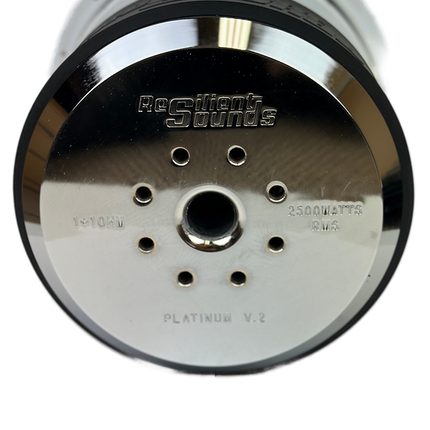

13% Larger Motor, XL Triple Stacked |

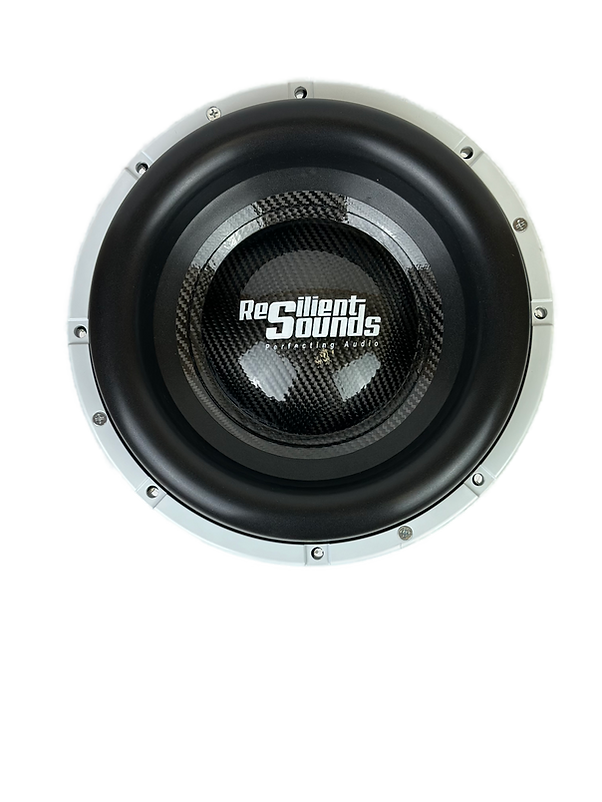

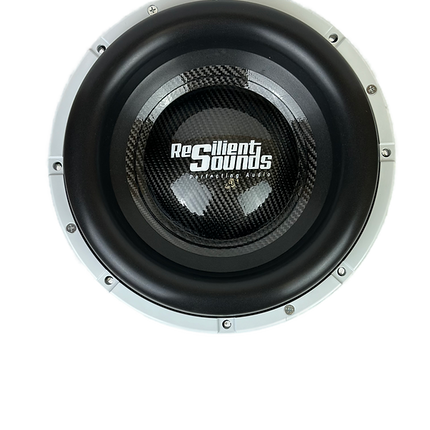

| Cone / Dust Cap |

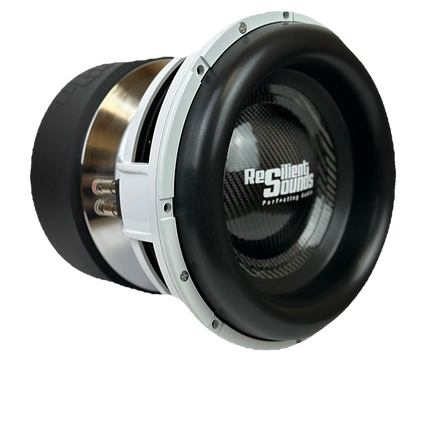

Carbon Fiber |
| Surround |
New High Roll Tooled Surround |
| Spider / Leads |

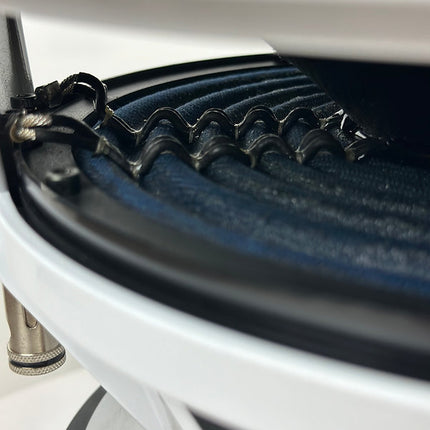

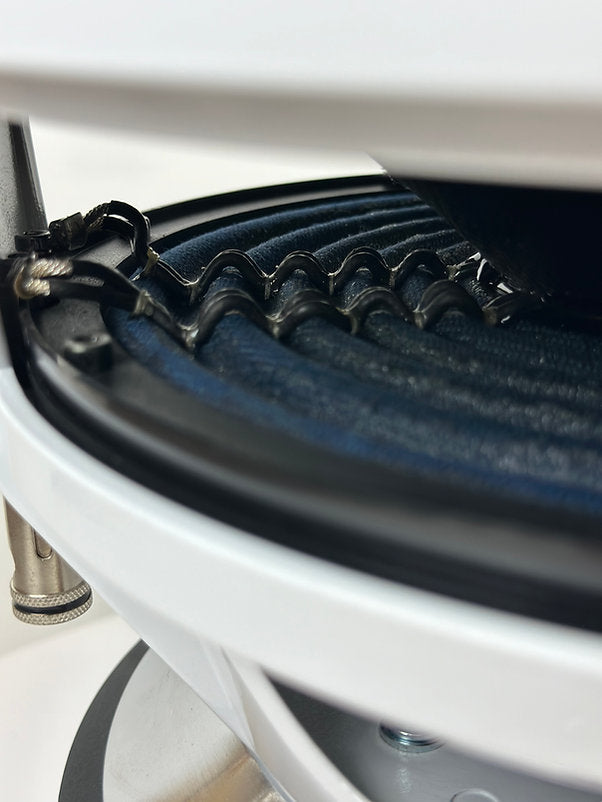

10" Spider Pack with Insulated Dual Leads |
| Frame/Basket |
Cast Aluminum Frame |
RECOMMENDED ENCLOSURE SPECIFICATIONS
| Internal Volume (Cubic Ft) |
2.00 - 3.00 CU FT |
| Tuning Frequency |
28 - 33 HERTZ |
| Port Area |
12 - 16 SQ INCHES OF PORT AREA PER CUBIC FT |
| Mounting Depth |
10.25 INCHES |
| Cutout Diameter |
11.175 INCHES |
| Displacement |
0.25 CU FT |
