Description

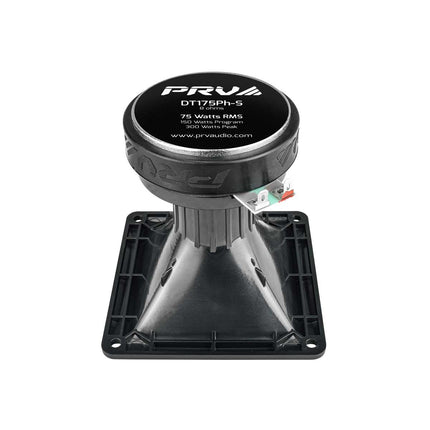

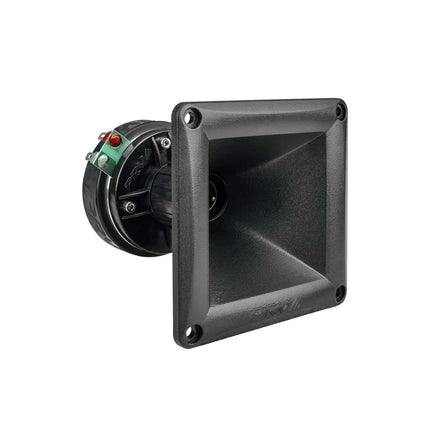

The WG175Ph compression driver combo is known for excellent driver performance, reliability, and power handling as replacement and upgrade for many PA speakers that use a standard 1-3/8″-18 TPI horn. The WG175Ph is a lightweight driver that weighs just 1.92 lbs, and yet offers you outstanding response through 19kHz.
Highlights
- Throat Diameter: 1″
- Type: Combo
- Nominal Impedance: 8 Ohms
- Rated AES Power Handling (RMS): 75 Watts
- Program Power: 150 Watts
GENERAL SPECIFICATIONS
| Exit Throat Diameter |
1” (25.4mm) |
| Nominal impedance |
8 Ohms |
| Rated AES Power Handling (RMS) |
75 Watts |
| Program Power |
150 Watts |
| Sensitivity 2.83V at 1m |
108 dB |
|
Recommended Hi Pass Crossover****For Full Power Handling |
3000 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB |
1,300 – 19,000 Hz |
| Voice Coil Diameter |
1″ (25.4 mm) |
| Voice Coil Wire |
CCAW |
| Voice Coil Former Material |
Kapton |
| Diaphragm Material |
Phenolic Resin |
| Flux Density |
1.02 T |
| Magnet Material |
Ferrite |
EXTRA INFO
| Overall Depth |
4.59” (116.7 mm) |
| Mounting Depth |
4.33” (110 mm) |
| Overall Width |
4.53” (115 mm) |
| Overall Height |
4.53” (115 mm) |
| Net Weight |
1.89 lbs (0.86 kg) |
| Shipping Weight |
2.09 lbs (0.95 kg) |
| Carton Dimensions W x L x H |
4.72” x 4.72” x 5.31” (120 x 120 x 135 mm) |
