Description

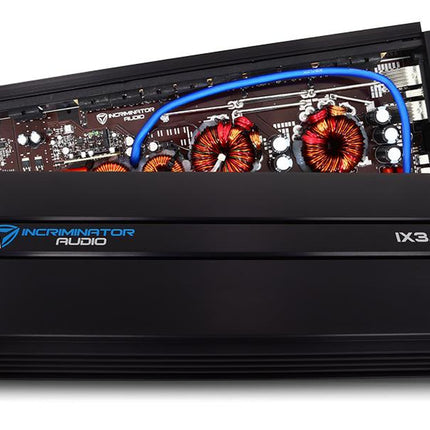

Incriminator Audio IX3.1 Amplifier
The flagship of our IX-series monoblock amplifiers, is the all-new, from the ground up, IX3.1. The Incriminator Audio IX3.1 muscles up with 3,000 watts on tap to more than get the job done.
The IX3.1 is feature packed, with a bass remote that has a clipping light for control at your fingertips, an advanced crossover network to dial in the performance you want, and is fully strapable if you feel the need to get nuts and double up on a pair of IX3.1’s. No corners were cut when it came to designing the best 3,000 watt, compact monoblock on the market.

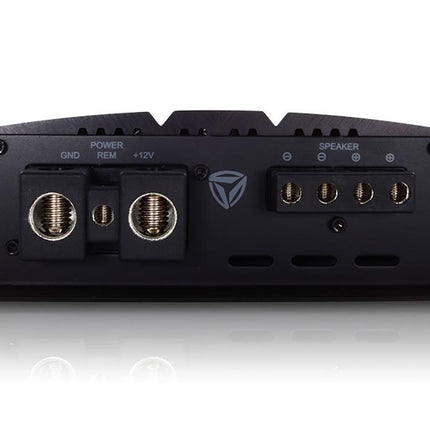

When you see specs like 16v capable, 8 gauge speaker wire outs, and 1/0 power & ground connections, you know right away, this IX3.1 was meant for one purpose only. Pure, clean, and controlled power, from a premium build, that is what you will always get when it comes to the IX3.1. Not only do you expect an amp of this quality and performance, but we expect it from ourselves. That is why we are very proud of the IX3.1 flagship monoblock amplifier.
Please Note- This amplifier ships directly from Incriminator Audio, please allow 1-2 day processing.
-
Features
- Digital Class-D Mono Block Amplifier
- Dual MOS-FET Pulse Width Modulation Power Supply
- 1 Ohm Topology
- 24 dB/octave - Variable State Subsonic Filter
- 24 dB/octave - Variable State Low Pass Filter
- 9 dB/octave - Variable State Bass Boost

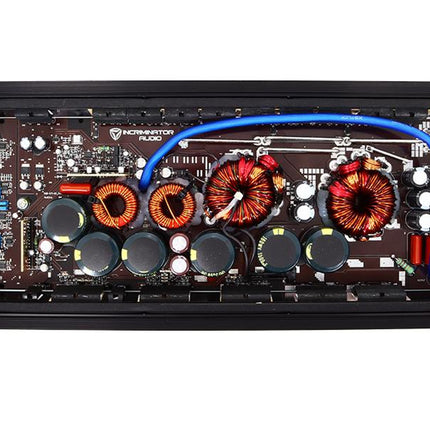

- Heavy Duty Copper Layer Double Sided Epoxy PCB
- Advanced Strapping with Mirror Techology
- Multi-Layer Bullet Proof Protection Circuit (Themal, Voltage, Speaker Short, DC)
- Wired Remote Control with Clipping Indicator
Specifications
| Rated Power ( 14.4V at 1% THD ) |
IX3.1 |
| RMS Power - 2 Ohm Linked : |
6000W |
| RMS Power - 1 Ohm Mono : |
3000W |
| RMS Power - 2 Ohm Mono : |
1500W |
| RMS Power - 4 Ohm Mono : |
750W |
| Low Pass Filter ( 24dB/Oct. ) : |
35Hz - 250Hz |
| Subsonic Filter ( 24dB/Oct. ) : |
10Hz - 50Hz |
| Frequency Response ( +/- 1dB ) : |
12Hz - 250Hz |
| Bass Boost ( 45Hz ) : |
0 - 9dB |
| Input Sensitivity ( Volt +/- 5% ) : |
6.0V - 0.2V |
| Signal / Noise Ratio : |
95dB |
| Dampening Factor ( 1 Ohm ) : |
200 + |
| Master/Slave/Mirror : |
Included |
| Power Efficiency ( 4 Ohm ) : |
94% |
| Fuse Rating ( 14.4V ) : |
300A |
| Fuse Rating ( 14.4V Linked ) : |
600A |
| Segmented Power Input Connection : |
1/0 AWG |
| Operation Voltage : |
8.5V - 16.0V |
| Speaker Output Connection : |
8 AWG |
| Dimensions ( Inches ) : |
7.48 W x 2.24 H x 15.74 L |
| Dimensions ( Millimeters ) : |
190 W x 57 H x 400 L |
