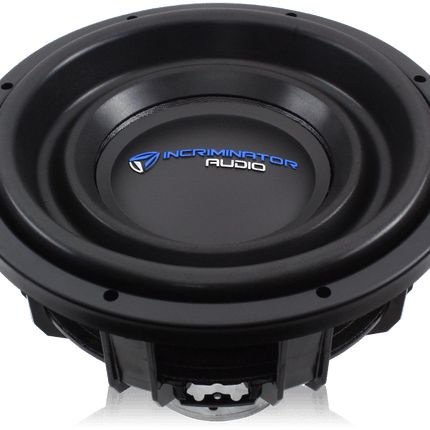

Incriminator Audio Flatlyne FL12 D2/D4 12" 600W RMS Subwoofer
Original price
$439.00
-
Original price
$439.00
Original price
$439.00
$439.00
-
$439.00
Current price
$439.00
FREE GIFT WITH EVERY PURCHASE AUTOMATICALLY ADDED TO CART!
Description
Incriminator Audio has been known for years to be a company dedicated to SPL. It is no secret that IA products have won numerous world records in the SPL lanes, and are all designed to be able to handle the extreme stress an SPL vehicle places on a product. The goal of the IA Flatlyne subwoofer was to crush all the rumors of IA only producing SPL products. The Flatlyne is an under-hung sound quality based subwoofer that will reproduce low octave tones with unmatched accuracy.
Features
- 8 Spoke Black Cast Basket
- 3" 8 Layer Round Copper Voice Coil
- Dual Black Progressive Spiders with Woven Tinsel Leads
- Injected Pulp Matrix Fiber Reinforced Cone
- Dual Layer Foam Surround
- 8" 100 Oz Single Magnet with an Underhung Topology
- 448 Oz / 28 Pound Motor Structure and Black Nickel Finish
- Interlocking Aluminum Spider Spacer Assembly
- CILD² - Center Interlocking Dustcap
- ADC - Air Driven Cooling
- Nickel Plated Push Terminals
- Wrap Around Rubber Gasket
- 600 Watt RMS Rated
- DVC 2 ohm or 4 ohm
- FL12D1 or FL12D2 ship directly from Incriminator Audio
Specifications
Driver
|
12 Inch | 15 Inch | 18 Inch |
---|---|---|---|
FS
|
28 Hz | N/A | N/A |
Re
|
8Ω Series | 8Ω Series | 8Ω Series |
Qms
|
3.88 | 4.58 | N/A |
Qes
|
.55 | .65 | N/A |
Qts
|
.43 | .51 | N/A |
Mms
|
224 g | 296 g | N/A |
Cms
|
0.14 mm/N | 0.14 mm/N | 0.14 mm/N |
Sd
|
480 cm² | 810 cm² | 1210 cm² |
Vas
|
36.9 L | 118 L | N/A |
Spl
|
83.7 db | 85.8 db | N/A |
BL
|
14.6 | 14.6 | 14.6 |
X-max
|
18 mm | 18 mm | 18 mm |
Sub Diameter
|
12.37" | 15.50" | 18.50" |
Mounting
|
11.12" | 14.12" | 16.87" |
Depth
|
6.75" | 7.50" | 8.87" |
Displacement
|
.13 Cu. Ft. | .15 Cu. Ft. | .18 Cu. Ft. |
Power
|
600 RMS | 600 RMS | 600 RMS |
