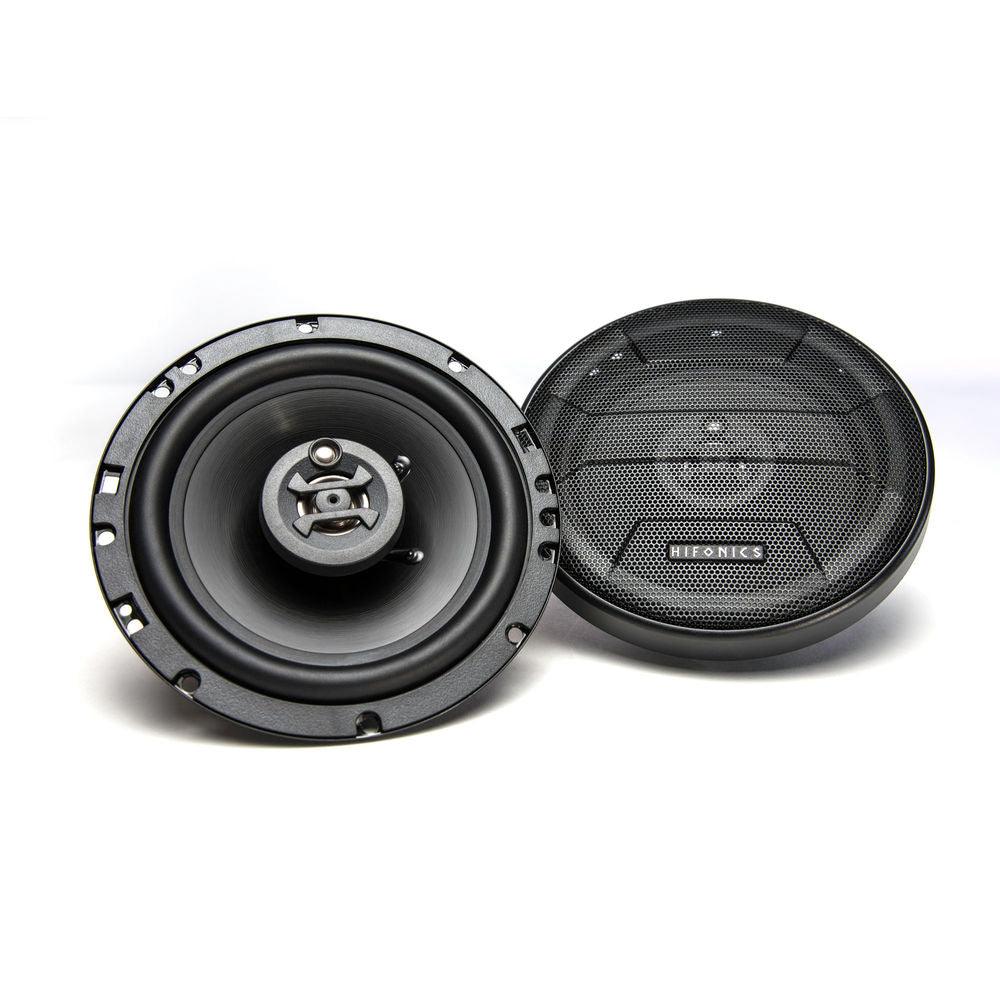

Hifonics Zeus 6.5 inch 3 way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair)
-
RMS POWER HANDLING (CEA426B)
50 -
MAXX POWER
300 -
SPEAKER IMPEDANCE
4 Ω -
FREQUENCY RESPONSE +/- 3DB
40 Hz - 22 kHz -
SENSITIVITY (1 WATT/1 METER)
88 db -
CROSSOVER POINT
4 khz -
CROSSOVER SLOPE
12dB -
MOUNTING DIAMETER/CUT OUT
5.59 -
OUTSIDE DIAMETER
7.01 -
MOUNTING DEPTH/CHASSIS DEPTH
2.13 -
DIMENSIONS
14.88 x 8.5 x 4.13 in -
WEIGHT
3.5 lbs -
TWEETER DOME MATERIAL:Neo-Mylar Soft Dome Tweeter
- Impact Resistant Tweeter Elements
-
SURROUND:Rubber
- Moisture Resistant Rubber Surround with high Mid-Bass Impact
-
CONE:Alpha-Cellulose Cones
- Light weight for speed and very rigid for deep bass
-
SURROUND / CONE COUPLING:High Temperature Adhesive
- Special adhesive is chosen to create a permanent bond between the cone and the surround
-
TINSEL LEADS:Braided
- Highly conductive while remain flexible during high power applications
-
VOICE COIL:Pure Copper
- Creates strong magnetic field with a very thin extrusion
-
VOICE COIL FORMER:Kapton
- Lightweight and efficiently dissipates heat
-
SPIDER:Epoxy infused Natural Fiber
- Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
-
COOLING SYSTEM: Overcoil
- Air is exchanged over the voice coil through the spider
-
CROSSOVER TYPE: Passive Butterworth
- Smooth transition of frequencies from midrange/midbass to the tweeter element
-
FRAME TYPE: Anti-Resonant Stamped Steel Basket
- Very strong with minimal harmonics or distortions from flex or ringing
-
MOTOR: Ferrite Magnet
- Creates a strong magnetic field while remaining small enough to fit nearly every application
-
CONNECTORS: Spade
- Use spade connectors or solder direct for the best connection
-
GRILLS: Yes
- Protects the speaker from accidental damage. Not used if speaker is mounted behind vehicle panel
-
TWEETER MATERIAL: Neo-Mylar Soft Dome
- Great sound quality and increased reliability
-
TWEETER SIZE: 1 inch
- Clear highs while handling plenty of power without sound harsh
-
TWEETER SURROUND MATERIAL: Kapton
- Lightweight and efficiently dissipates heat
