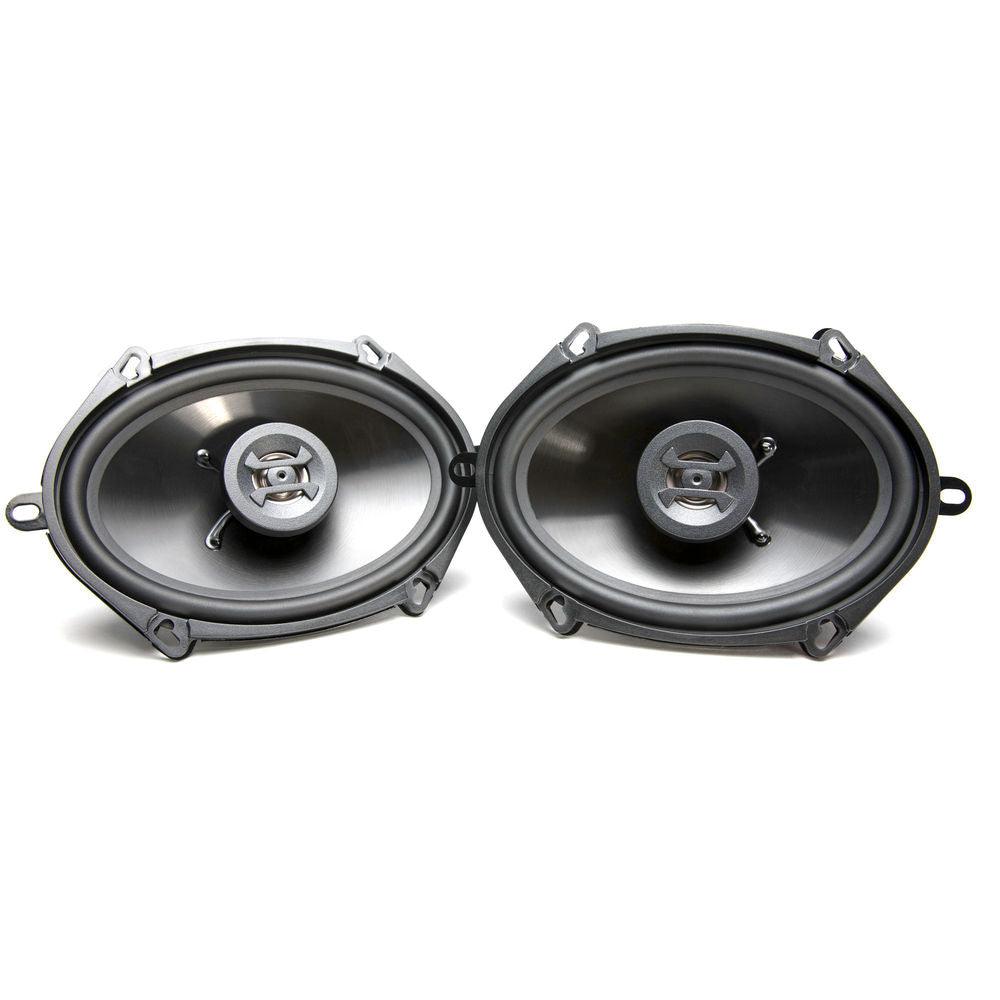

Hifonics Zeus ZS5768CX 5x7 6x8 250W 4-Ohm 2-Way Coaxial Car Audio Speakers

Original price $24.95 - Original price $24.95
Original price
$24.95
$24.95 - $24.95
Current price $24.95

Description
Hifonics Zeus 5 x 7 / 6 x 8 inch 2 way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair) - includes 6x8 inch adapter plate (No Grills)

  • RMS POWER HANDLING (CEA426B)
    90
  • MAXX POWER
    250
  • SPEAKER IMPEDANCE
    4 Ω
  • FREQUENCY RESPONSE +/- 3DB
    46Hz-20kHz
  • SENSITIVITY (1 WATT/1 METER)
    88 db
  • CROSSOVER POINT
    4 khz
  • CROSSOVER SLOPE
    12dB
  • MOUNTING DIAMETER/CUT OUT
    5.67
  • OUTSIDE DIAMETER
    8.60 x 5.56 No Grill
  • MOUNTING DEPTH/CHASSIS DEPTH
    2.13
  • DIMENSIONS
    12.75 x 9.63 x 3.69 in
  • WEIGHT
    3.4 lbs
  • TWEETER DOME MATERIAL:Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
  • SURROUND:Rubber Moisture Resistant Rubber Surround with high Mid-Bass Impact
  • CONE:Alpha-Cellulose Cones Light weight for speed and very rigid for deep bass
  • SURROUND / CONE COUPLING:High Temperature Adhesive Special adhesive is chosen to create a permanent bond between the cone and the surround
  • TINSEL LEADS:Braided Highly conductive while remain flexible during high power applications
  • VOICE COIL:Pure Copper Creates strong magnetic field with a very thin extrusion
  • VOICE COIL FORMER:Kapton Lightweight and efficiently dissipates heat
  • SPIDER:Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
  • COOLING SYSTEM: Overcoil Air is exchanged over the voice coil through the spider
  • CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element
  • FRAME TYPE: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing
  • MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application
  • CONNECTORS: Spade Use spade connectors or solder direct for the best connection
  • GRILLS: No Typically used in factory dash replacement locations where grills are not required
  • TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability
  • TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh
  • TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat
