Description

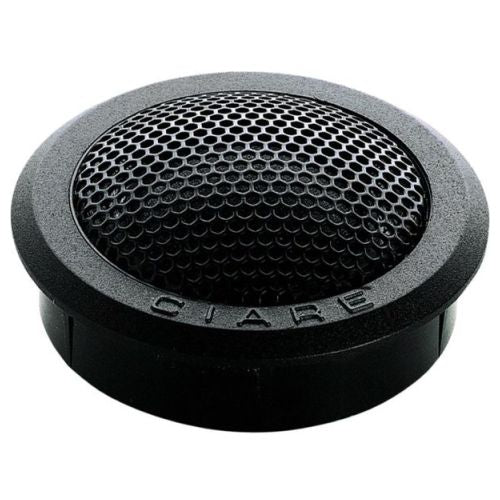

The Ciare CT250 is a premium 1″ silk-dome tweeter, engineered for audiophile applications and high-fidelity speaker systems. Designed to deliver smooth, natural high frequencies with minimal harshness, the silk soft dome ensures pleasant tonal balance and extended listening comfort. Its neodymium magnet motor assembly provides excellent magnetic rigidity in a compact design, enabling integration into space-conscious builds without sacrificing performance.
Capable of 150 W program power handling and featuring a 91 dB sensitivity rating, the CT-250 is built to perform reliably in demanding systems. Its broad frequency response from 2,500 Hz to 20,000 Hz ensures crisp treble and delicate detail, making it ideal for 2-way and 3-way speakers, studio monitors, or premium car audio component systems. The robust voice coil, precise motor structure, and compact mounting form make it a favored choice for OEMs and custom-build projects alike.
Select the CT-250 when you want a versatile, high-quality tweeter that blends smooth treble character with mechanical reliability. Available and often sold as a matched pair, this model offers excellent value for high-end audio installations and accurate, open high-frequency reproduction.
Specifications
-
Driver Type: Soft dome tweeter (silk)
-
Nominal Diameter: 26 mm (1 in)
-
Nominal Impedance: 4 Ω
-
Nominal / Program Power: 75 W / 150 W
-
Sensitivity: 91 dB (1W/1m)
-
Frequency Range: 2,500 – 20,000 Hz
-
Resonance (Fs): 1,400 Hz
-
Qes: 1.23
-
Qts: 0.54
-
Moving Mass (Mms): 0.3 g
-
Inductance (Le): 0.08 mH
-
Bl Factor: 1.7 T·m
-
Effective Radiating Diameter (d): 32 mm
-
Effective Radiating Area (Sd): 8 cm²
-
Overall Diameter: 54 mm (2.13 in)
-
Mounting Depth: 17.5 mm (0.69 in)
-
Baffle Cutout Diameter: 48 mm (1.89 in)
-
Flange Thickness: 3 mm
-
Net Weight: ~0.11 kg (0.24 lb)
