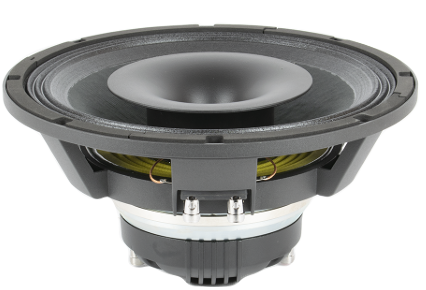

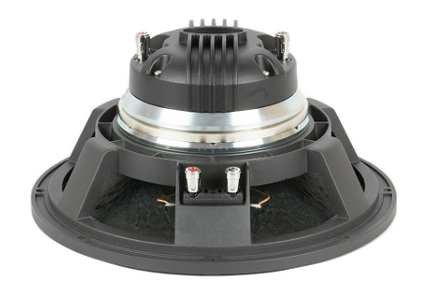

Beyma 12CXA400ND 12" 800 Watt Competition Car Pro Audio Coaxial Neo Mid Speaker

Description

  • BOTH HF & LF DRIVERS UTILIZE LIGHTWEIGHT NEODYMIUM MAGNETS
  • 12″ WOOFER FEATURES A LARGE 4″ VOICE COIL & HIGH 6.0MM XMAX
  • DEMODULATION RINGS FOR BOTH THE HIGH FREQUENCY & LOW FREQUENCY UNITS
  • 60° HORN COVERAGE FOR HIGH FREQUENCY CONTROLLED DISPERSION
  • HF FEATURES AN ALUMINUM RIBBON VOICE COIL W/ A COMBINATION TITANIUM DOME & MYLAR SURROUND THAT PRODUCES AN EXTREMELY SMOOTH SOUND
  • WOOFER IS WATERPROOF & HANDLES A POWERFUL 400 WATTS AES & 800 WATTS PROGRAM
  • WELL SUITED FOR COMPACT PORTED SPEAKER CABINETS
  • SOUND IS VERY WARM, DETAILED & SMOOTH ON YOUR EARS EVEN TO THE MOST DISCERNING LISTENER!
  • SOLD PER SPEAKER
TECHNICAL SPECIFICATIONS
Nominal diameter   300 mm 12 in
Nominal impedance LF/HF   8/16 ohm
Minimum impedance LF/HF   6.8/13.5 ohm
Power capacity LF/HF   400/90 W AES
Program power LF/HF   800/180 w
Sensitivity LF/HF   98/105 2.83 @ 1 m @ 2Π
Frequency range   35-20000 Hz
Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope)
Voice coil diameter LF/HF   100/72 mm – 4 /2.9 in
Dispersion (conical)   60º
BL factor   18.1 N/A
Moving mass   0.048 kg
Winding length   16 mm
Xdamage pp   28 mm
LF Recone kit ref.   5M12CXA4ND8
HF diaphragm ref.   5MCP756
THIELE SMALL PARAMETERS
Fs   45 Hz
Re   6.6 ohm
Qms   6.24
Qes   0.28
Qts   0.26
Vas   102.2 l
Cms   260 µm / N
Rms   2.19 kg/s
Efficiency %   3.25
Sd   0.055m²
Xmax   6 mm
Vd   210 cm³
Le @1 kHz   1mH
CONSTRUCTIVE DETAILS
Net weight   7.18 kg 15.83 lb
Total weight   8.05 kg 17.75 lb
Magnet   Neodymium

Beyma 12CXA400ND 12" 800 Watt Competition Car Pro Audio Coaxial Neo Mid Speaker

Product form

BOTH HF & LF DRIVERS UTILIZE LIGHTWEIGHT NEODYMIUM MAGNETS 12″ WOOFER FEATURES A LARGE 4″ VOICE COIL & HIGH 6.0MM... Read more

$549.99  $349.99

    • Free shipping in the contiguous USA on all orders above $99
    • Full Manufacturer Warranty On All Items
    • No Hassle, Easy 30 Day Returns
    • Price Match Guarantee. Lowest Prices Anywhere.
    • REAL Audio Enthusiasts, Expert Support
    General
    Speaker Size12" (from product type)
    Construction
    Voice Coil Size4"

    Description

    • BOTH HF & LF DRIVERS UTILIZE LIGHTWEIGHT NEODYMIUM MAGNETS
    • 12″ WOOFER FEATURES A LARGE 4″ VOICE COIL & HIGH 6.0MM XMAX
    • DEMODULATION RINGS FOR BOTH THE HIGH FREQUENCY & LOW FREQUENCY UNITS
    • 60° HORN COVERAGE FOR HIGH FREQUENCY CONTROLLED DISPERSION
    • HF FEATURES AN ALUMINUM RIBBON VOICE COIL W/ A COMBINATION TITANIUM DOME & MYLAR SURROUND THAT PRODUCES AN EXTREMELY SMOOTH SOUND
    • WOOFER IS WATERPROOF & HANDLES A POWERFUL 400 WATTS AES & 800 WATTS PROGRAM
    • WELL SUITED FOR COMPACT PORTED SPEAKER CABINETS
    • SOUND IS VERY WARM, DETAILED & SMOOTH ON YOUR EARS EVEN TO THE MOST DISCERNING LISTENER!
    • SOLD PER SPEAKER
    TECHNICAL SPECIFICATIONS
    Nominal diameter   300 mm 12 in
    Nominal impedance LF/HF   8/16 ohm
    Minimum impedance LF/HF   6.8/13.5 ohm
    Power capacity LF/HF   400/90 W AES
    Program power LF/HF   800/180 w
    Sensitivity LF/HF   98/105 2.83 @ 1 m @ 2Π
    Frequency range   35-20000 Hz
    Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope)
    Voice coil diameter LF/HF   100/72 mm – 4 /2.9 in
    Dispersion (conical)   60º
    BL factor   18.1 N/A
    Moving mass   0.048 kg
    Winding length   16 mm
    Xdamage pp   28 mm
    LF Recone kit ref.   5M12CXA4ND8
    HF diaphragm ref.   5MCP756
    THIELE SMALL PARAMETERS
    Fs   45 Hz
    Re   6.6 ohm
    Qms   6.24
    Qes   0.28
    Qts   0.26
    Vas   102.2 l
    Cms   260 µm / N
    Rms   2.19 kg/s
    Efficiency %   3.25
    Sd   0.055m²
    Xmax   6 mm
    Vd   210 cm³
    Le @1 kHz   1mH
    CONSTRUCTIVE DETAILS
    Net weight   7.18 kg 15.83 lb
    Total weight   8.05 kg 17.75 lb
    Magnet   Neodymium
