Description
Product Overview: The High-Performing Crowd-Pleaser 12-Inch Driver

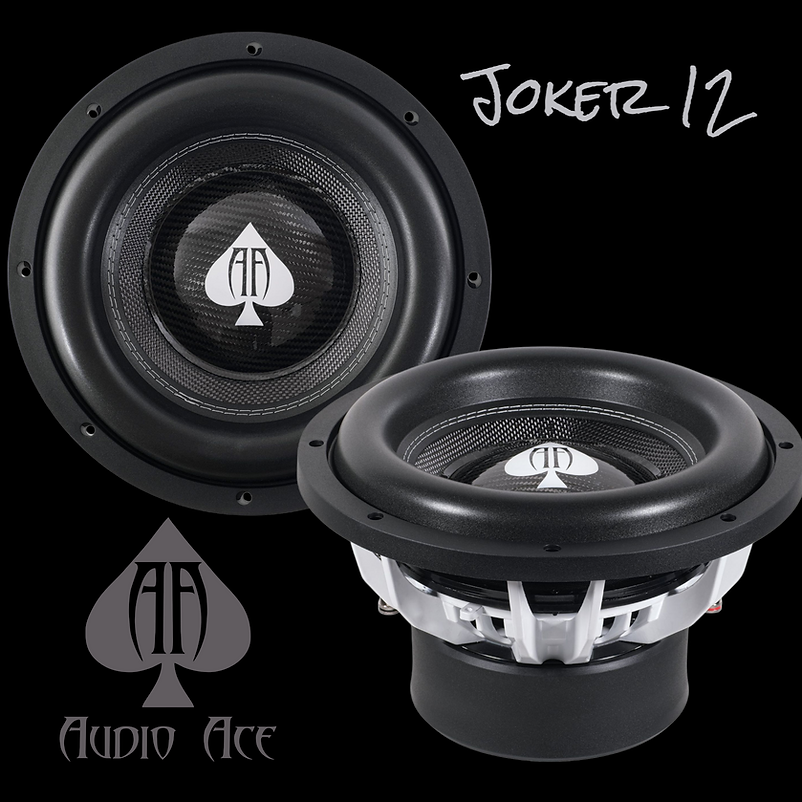

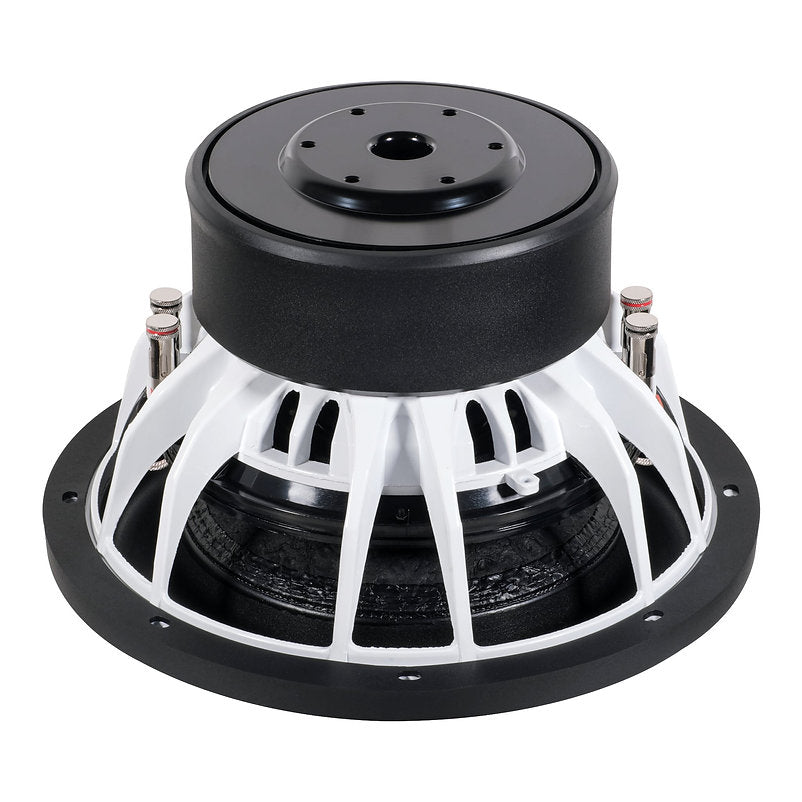

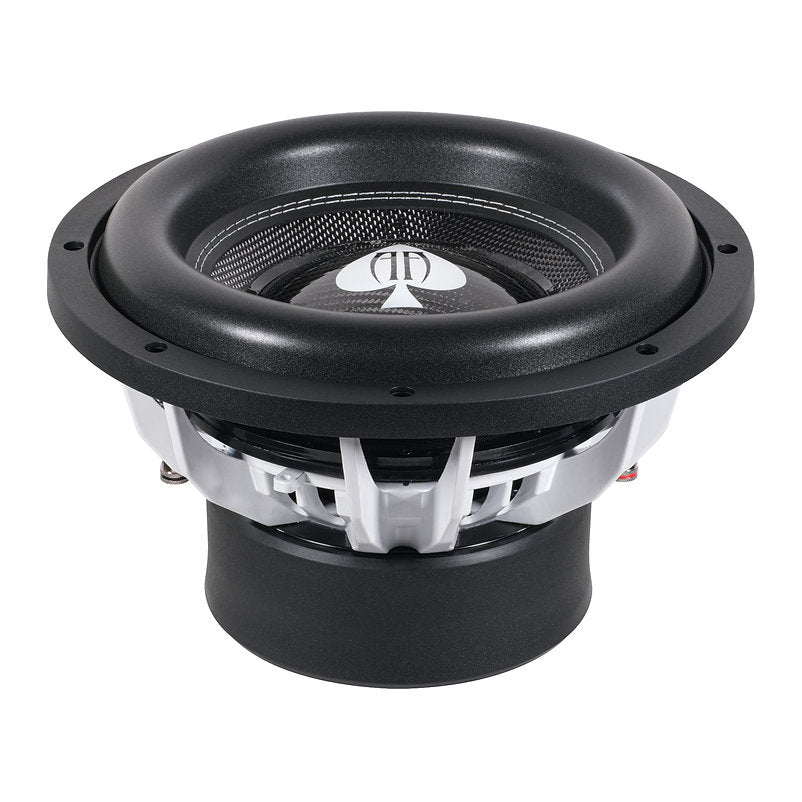

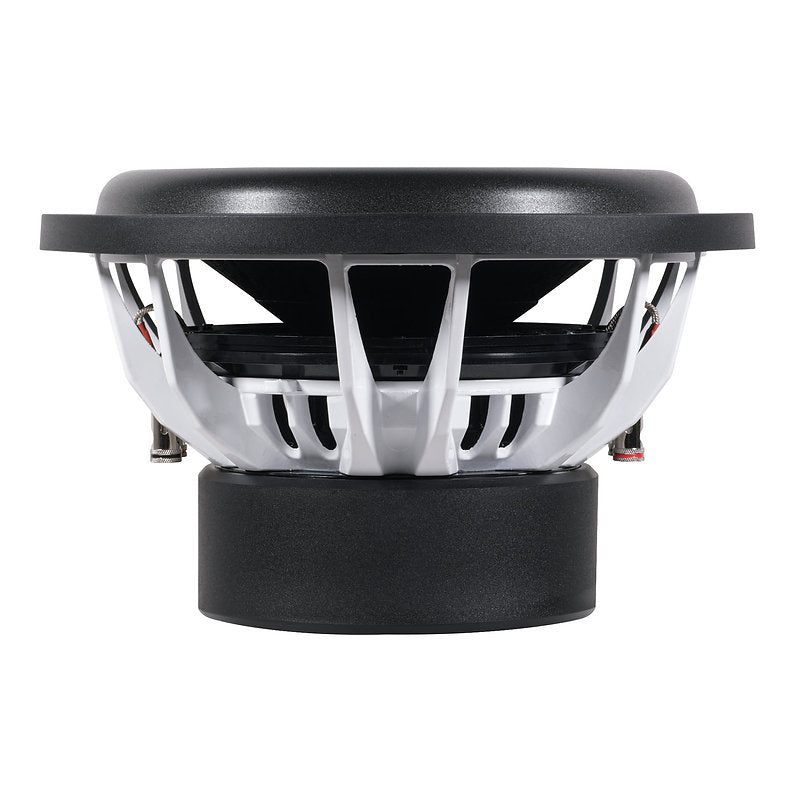

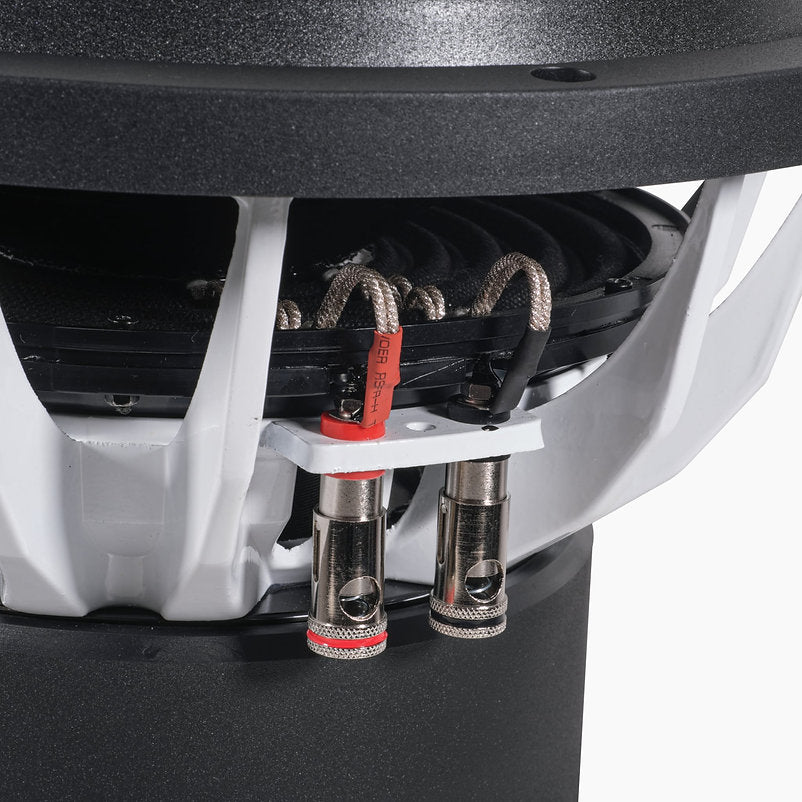

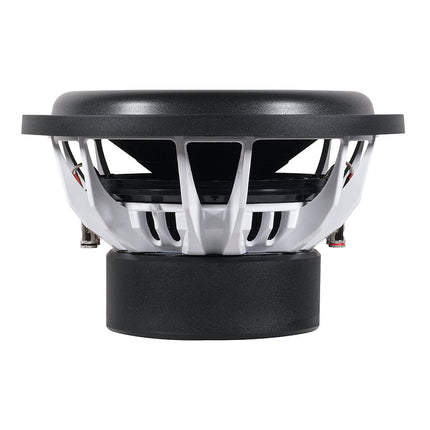

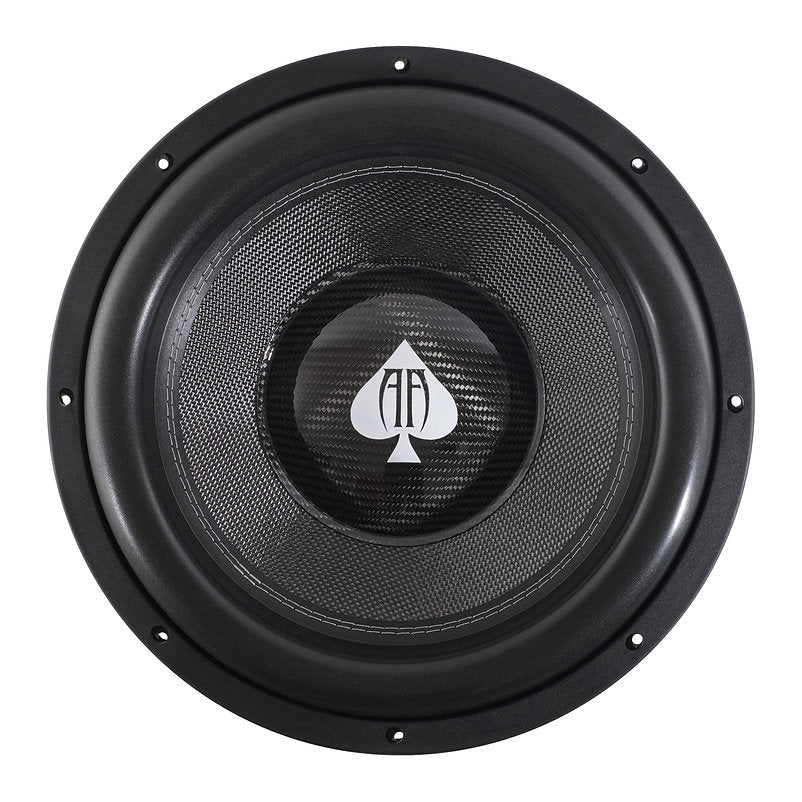

Don’t let the name fool you! The Audio Ace Joker 12" V3 D2 is NO JOKE and is one of Audio Ace’s most popular subwoofers. From Mild to Wild, the Joker is a great performing subwoofer, boasting a conservative 1,000W RMS rating designed to outperform your expectations. This 12-inch driver features a wide roll surround, a high-temperature 3-inch 4-layer epoxy voice coil, and a high-efficiency 168oz FEA Optimized Magnet Motor. The Dual 2 Ohm impedance provides flexible wiring for a 1 Ohm or 4 Ohm final load. The Joker works great in Sealed, Ported, and Bandpass enclosures.
| AUDIO ACE JOKER 12" V3 DUAL 2 OHM SPECIFICATIONS |
| Size |
12 Inch |
| RMS Power Handling (Conservative) |
1,000 Watts |
| Nominal Impedance |
Dual 2 Ohm (D2) |
| Voice Coil |
3 Inch 4 Layer Epoxy High Temp |
| Motor Weight |
168 oz (FEA Optimized) |
| Surround |
Wide Roll Surround |
| Mounting Depth |
7 Inches |
| Cutout Diameter |
11.181 Inches |
| LOSS FACTORS & MISC PARAMETERS |
| Total Q (Qts) |
0.422 |
| Mechanical Q (Qms) |
4.374 |
| Electrical Q (Qes) |
0.468 |
| Free Air Resonance (Fs) |
28.7 Hz |
| Sensitivity (Lm) |
83.17 dB |
| Equivalent Volume (Vas) |
25.6381 L |
| Moving Mass (Mms) |
376.260 g |
| BL Factor (Bl) |
23.513 |
|
|
