Description

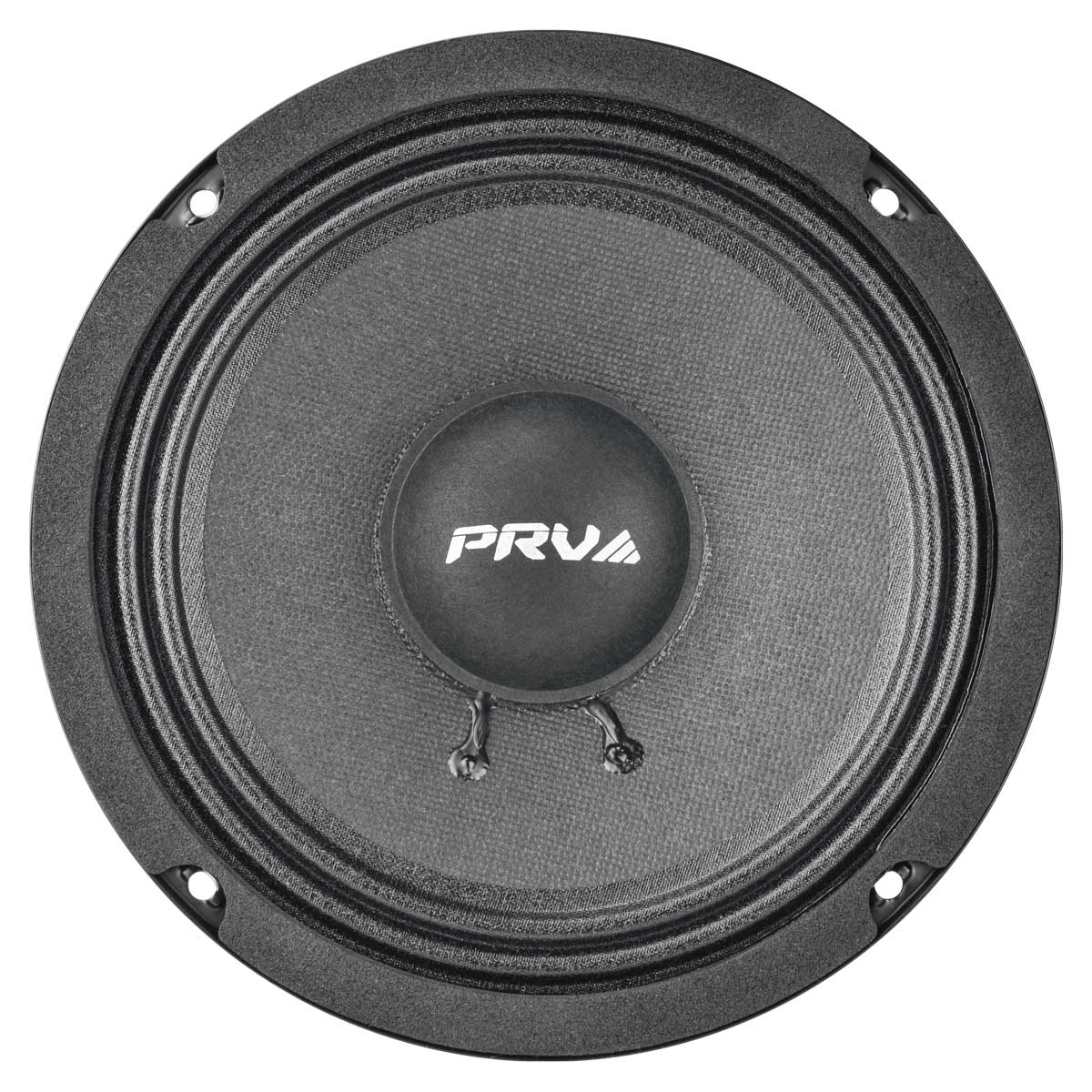

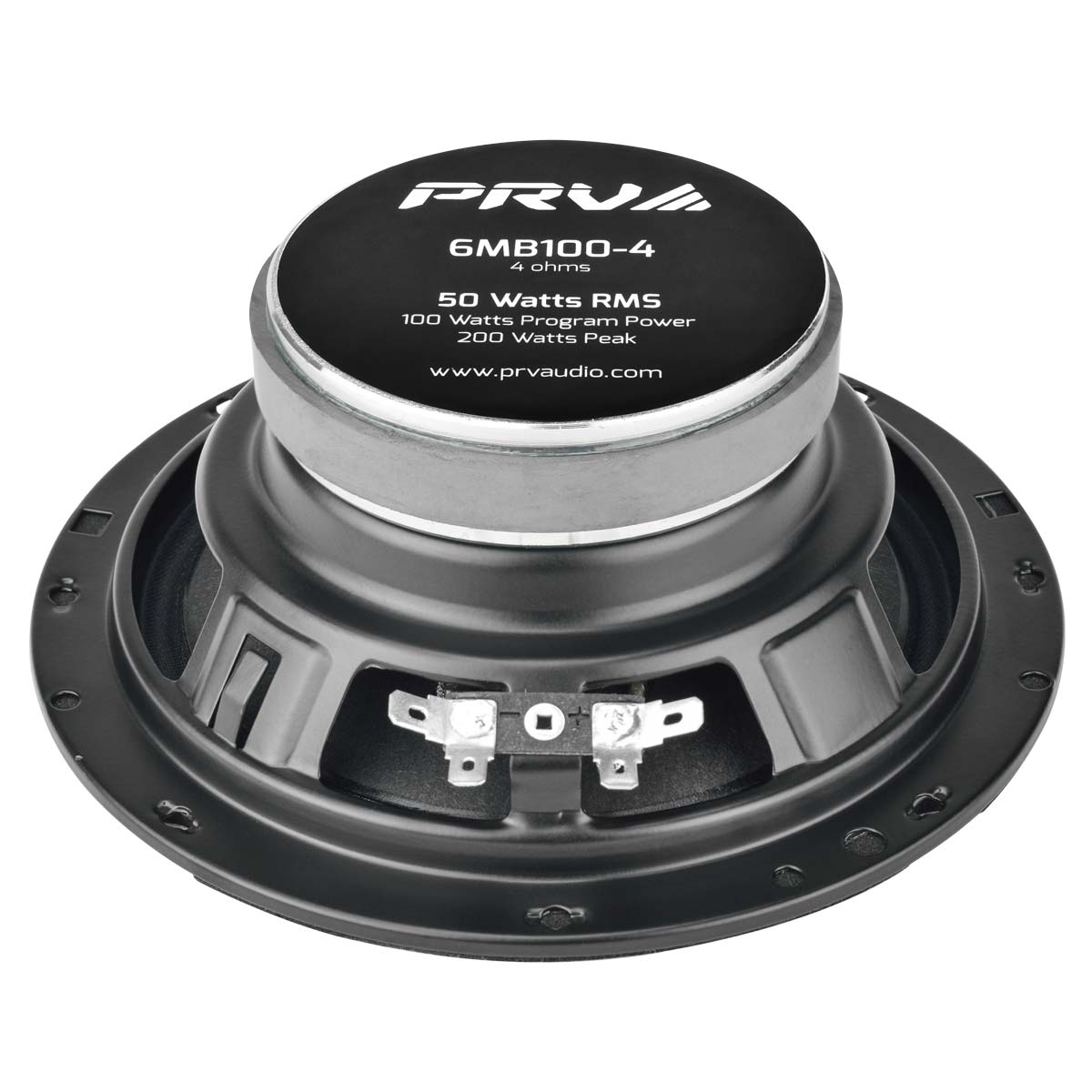

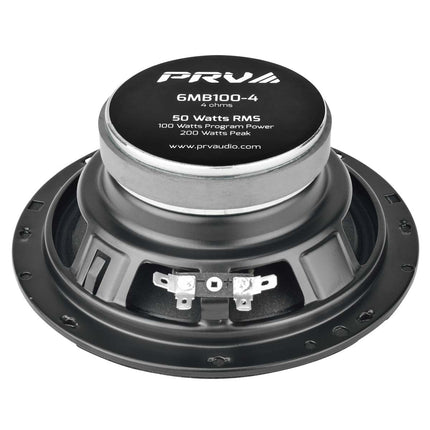

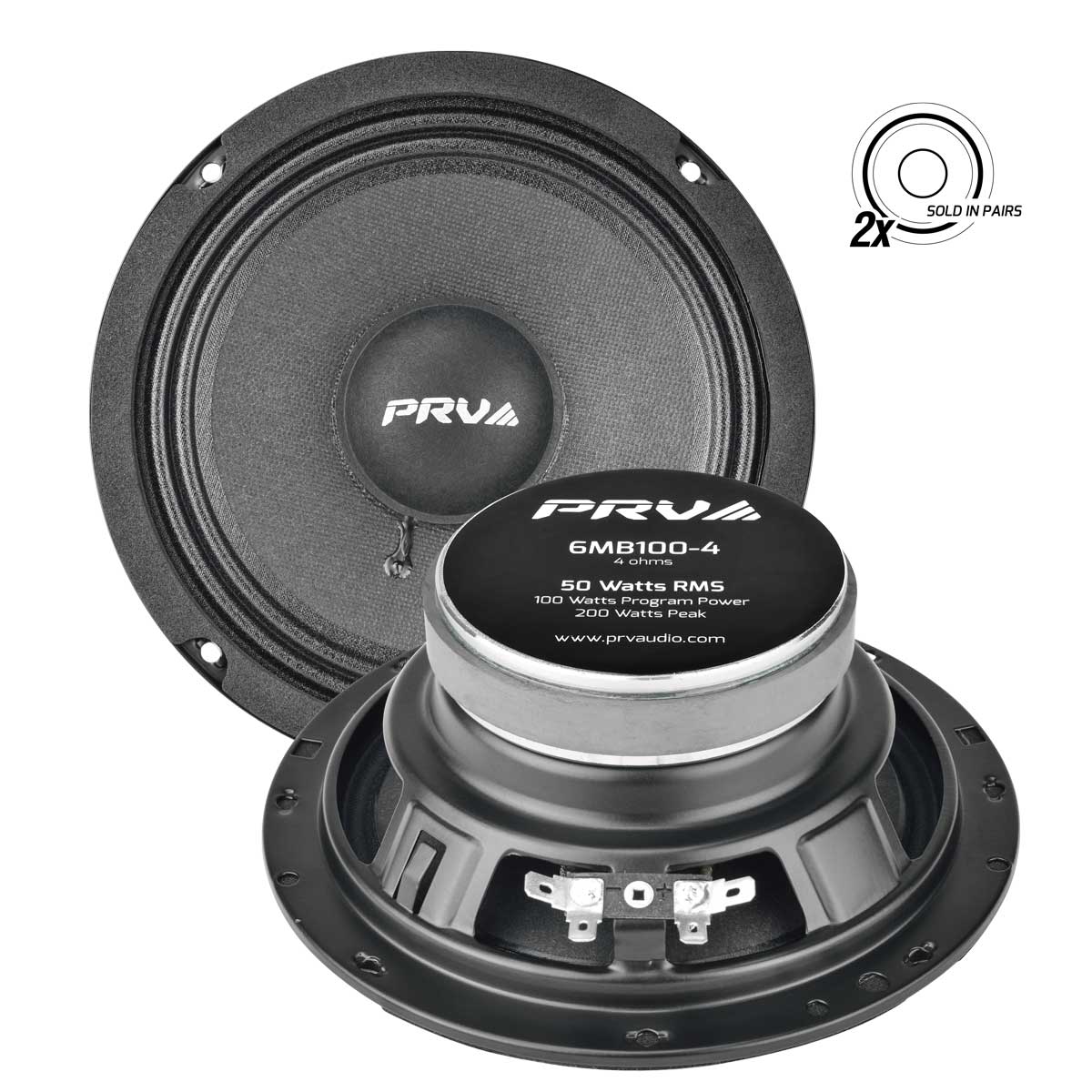

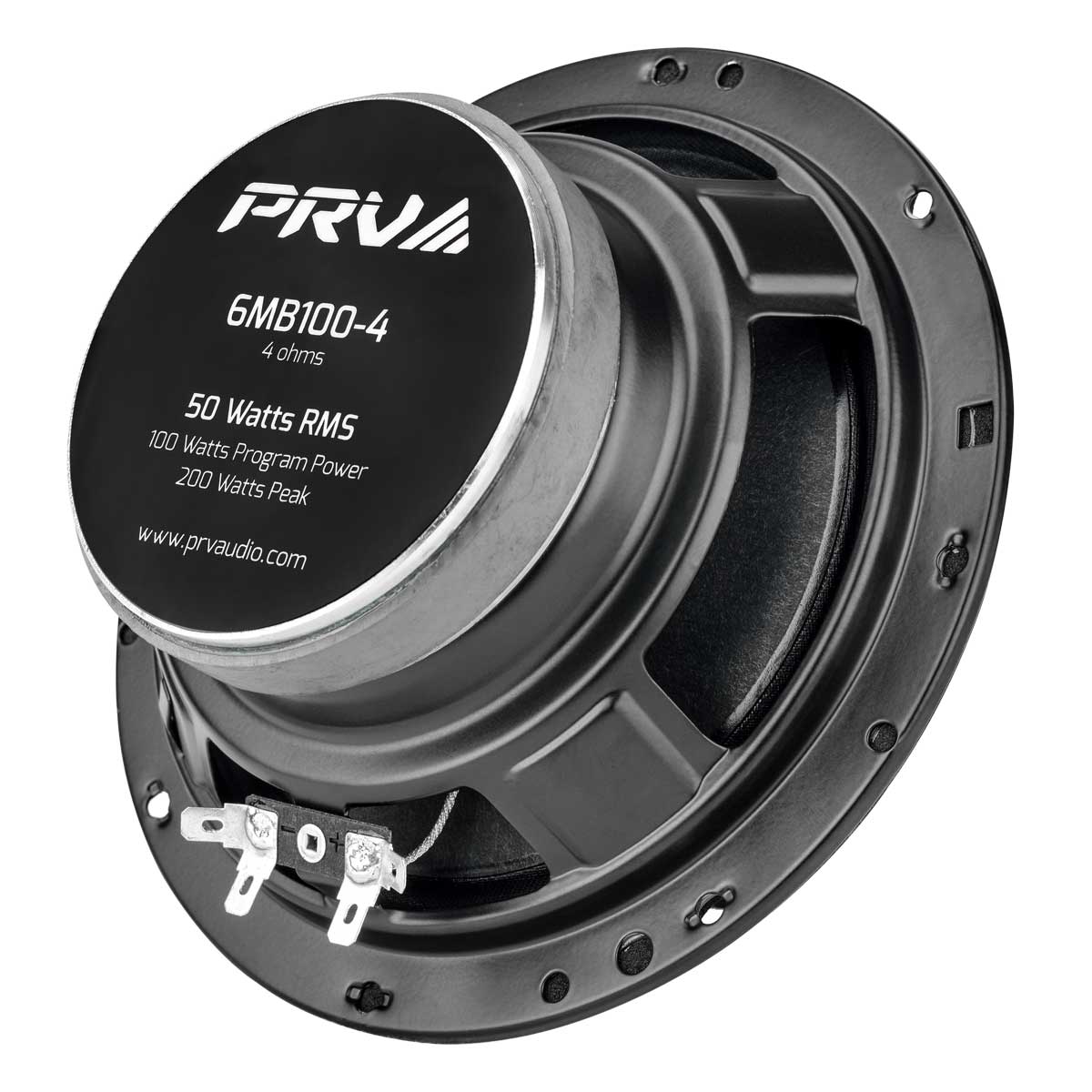

6.5″ Midbass Speakers 6MB100-4 – PAIR of factory replacement 4 ohms Loudspeakers
We have combined the PRO audio and high fidelity audio into a new type of driver aimed at delivering high levels of clean output from stock speaker locations.
The 6MB100-4 speakers can be used to transform a stock system into a concert level experience without cutting up interior panels. The shallow mounting depth of 2.32″ is designed for easier installation with its standard frame size that fits in many OEM speaker locations.
Highlights
- Under 2.32″ (60 mm) mounting depth, with compact diameter magnet motor
- Broad 90 – 10,000 Hz frequency range for ultimate flexibility
- Nominal Impedance: 4 Ohms – perfect to install from radio outputs
- Power handling: 50 watts RMS / 200 watts max
- Sensitivity (1W/1m): 90 dB – Improvement over most stock car audio speakers
GENERAL SPECIFICATIONS
| Nominal Diameter |
6″ (152 mm) |
| Nominal impedance |
4 Ohms |
| Rated AES Power Handling (RMS) |
50 Watts |
| Program Power |
100 Watts |
| Sensitivity 2.00V at 1m |
90 dB |
|
Recommended Hi Pass Crossover**For Full Power Handling |
90 Hz** **12db Per Octave Crossover |
| Frequency Response at -10dB |
90 – 10,000 Hz |
| Voice Coil Diameter |
1.5″ (38 mm) |
| Voice Coil Wire |
CCAW |
| Voice Coil Winding Depth |
8 mm |
| Former Material |
Kapton |
| Magnetic Gap Depth |
5 mm |
| Frame Material |
Stamped Steel |
EXTRA INFO
| Overall Diameter |
6.54″ (166 mm) |
| Front Mount Baffle Cutout |
5.60″ (142 mm) |
| Mounting Depth |
2.32″ (59 mm) |
| Overall Depth |
2.55″ (64.7 mm) |
| Net Weight |
1.98 Lbs (0.90 kg) |
| Shipping Weight |
3.62 Lbs (1.64 kg) |
| Carton Dimensions W x L x H |
7.17″ x 14.19″x 3″ (182 x 182 x 105 mm) |
