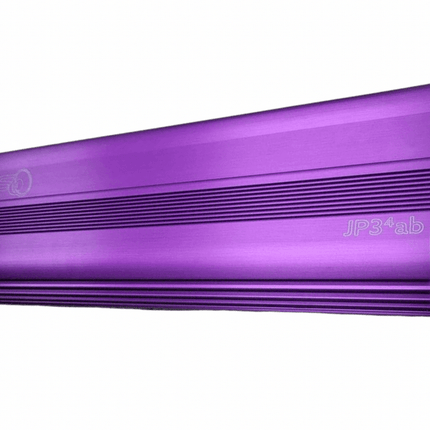

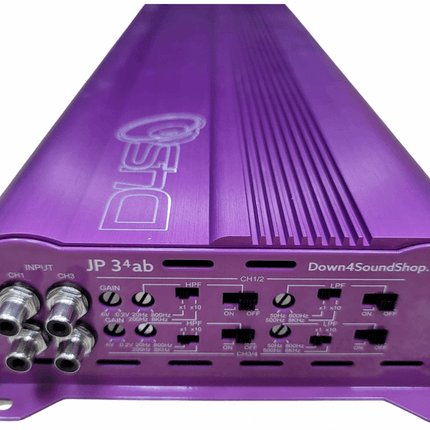

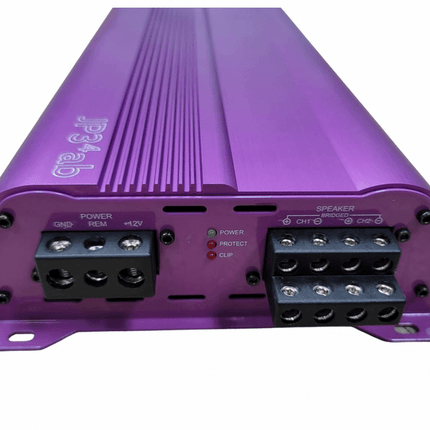

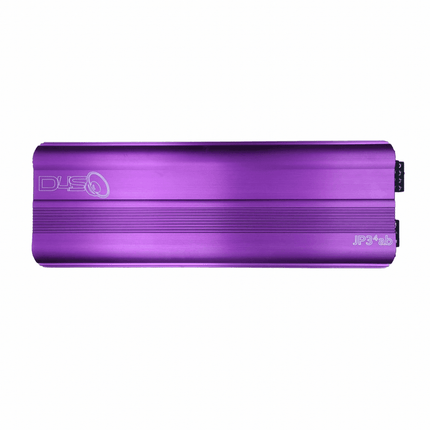

JP 34 CLASS AB Amplifier
The long-awaited return of the JP34AB is finally here, and it's better than ever. This amp is a rare piece of class AB greatness, and it's packed with features that will take your audio to the next level. The accurate channel clip indicator is a great tool for keeping your sound in check, and the thermal stabilization of internal high flow fans will keep your amp running at its best. With its 90's Purple color, this amp is sure to turn heads, so don't wait – order now and be one of the first to experience the JP34AB.
- RMS power, 2ohm : 200W x 4 RMS at 14.4V
- RMS power, 4ohms : 134W x 4 RMS at 14.4v
- RMS power, 4ohms Bridged: 450W x 2 (manual has typo)
- Frequency Response: 10 Hz - 45KHz
- High Pass Filter: 20Hz - 800Hz
- High Pass Filter Multiply: x1 - x10 (200Hz -8KHz)
- Low Pass Filter: 50Hz - 800Hz
- Low Pass Filter Multiply:x1, x10 ( 500Hz - 8KHz )
- Input sensitivity: 6V - 0.2V
- Signal to Noise Ratio: 100Db
- T.H.D @ 4ohm: less than 0.1%
- Fuse rating: 100A
- Length (inches): 19.68"
- Width x Height (inches): 7.4" W x 2.24" H
- 9-16V Operating Range
